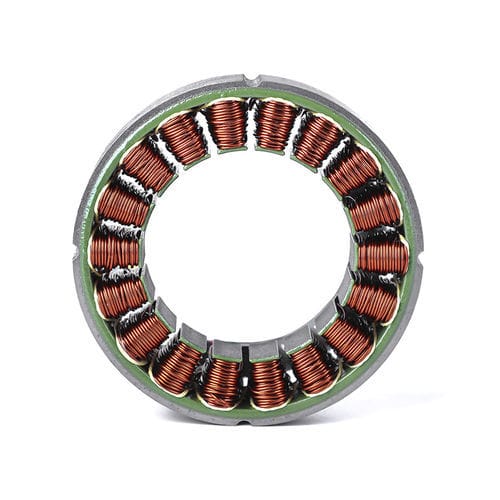

Frameless torque motor RI80 KV75DCthree-phasesynchronous
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC, three-phase
- Type
- synchronous
- Voltage
- 48 V, 12 V, 24 V, 36 V
- Protection class
- rugged, robust
- Configuration
- permanent magnet, frameless
- Number of poles
- multipole
- Cooling mechanism
- air-cooled, air-cooled
- Applications
- packaging machine, for robotics, industrial, for medical applications, heavy-duty, agricultural, for automotive applications
- Other characteristics
- direct-drive, high-torque, high-precision, high-speed, high-power, low-noise, high-inertia, with built-in encoder
- Power
Max.: 1,344 W
(1.827 hp)Min.: 480 W
(0.653 hp)- Intensity
Max.: 28 A
Min.: 10 A
- Torque
Max.: 4 Nm
(2.9502 ft.lb)Min.: 1.45 Nm
(1.0695 ft.lb)- Rotational speed
1,280 rpm, 1,980 rpm, 2,805 rpm
(8,042.48 rad.min-1, 12,440.71 rad.min-1, 17,624.33 rad.min-1)- Diameter
85 mm
(3.35 in)- Operating temperature
Max.: 85 °C
(185 °F)25 °C
(77 °F)Min.: -40 °C
(-40 °F)
Description
RI80 KV75
$132.90
Available points：0 Points ▏ Points reward：132 Points
Promotion
Every $200, $20 off
• Voltage:12V-48V
• Lower cogging torque for easy control
• High torque density and dynamics
• High precision control with 0.01°
Specifications-RI80
Weight(g) : 411.2
Voltage(V) : 24/36/48
Rated Torque(N.m) : 1.45
Peak Torque(N.m) : 4.1
Max Speed@Rated Torque(Rpm) : 1280/1980/2805
Rated Current(A) : 10.4
Peak Current(A) : 29.3
Kt(N.m/A) : 0.14
Ke(V/rpm) : 0.0147
leading wire : 200mm 16#AWG
Kv(Rpm/v) : 75
Km(Nm/Vw) : 0.2406
Moment of inertia(g-cm2) : 176.68
Pole-pairs : 7
Phase to Phase resistance(mQ) : 280
Phase to Phase Inductance(uH) : 988.3
OD(mm) : 85
ID(mm) : 40.5
Height(mm) : 26
Max Torque Weight Ratio(N.m/kg) : 9.97
