Air airborne particle counter OPC-6510A

laserHVACfor pharmaceutical products

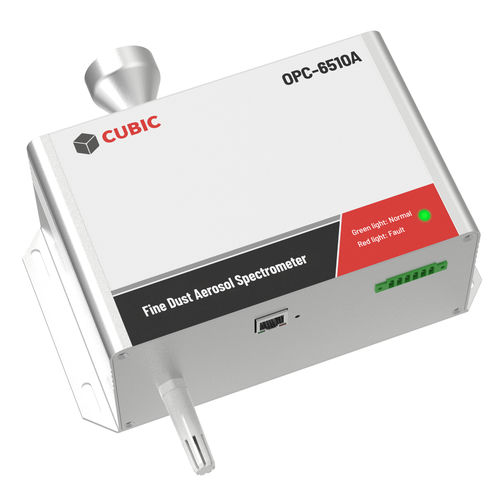

Cubic OPC-6510A is a high-performance light-scattering aerosol spectrometer for precise measurement of PM1.0, PM2.5, and PM10. Leveraging the optical properties of aerosol, OPC-6510A delivers accurately measures particle sizes ranging from 0.3µm to 10µm through 12-channel output. With Modbus-RTU and MQTT communication capabilities, OPC-6510A facilitates continuous monitoring and real-time collection of PM fractions. OPC-6510A is suitable for different applications, including evaluating air purifier efficiency, monitoring both IAQ&OAQ. Features 1. Light-scattering technology for accurate, real-time, and continuous particulate measurement. 2. 12 channels with outputs ranging from 0.3 to 10 μm, achieving a volume flow rate of 6 LPM. 3. Integrated temperature and humidity sensors enhance performance and accuracy. 4. Adapt to a wide range of temperature environments, including high humidity conditions. 5. Customization options for diverse applications and complex environments. Specifications Working Principle: Light scattering Particle Concentration Output: PM1.0, PM2.5 and PM10 at μg/m³ Particle Quantity Output: 12 channels (>0.3μm, >0.4μm, >0.5μm, >0.6μm, >0.8μm, >1.0μm, >1.5μm, >2.0μm, >2.5μm, >5.0μm, >8.0μm, >10μm) in pcs/L Measurement Range (Size): 0.3μm to 10μm, 0~200 μg/m³ Accuracy (Mass): PM1.0/PM2.5: 0~50μg/m³: ±5μg/m³; 50~100μg/m³: ±10% of reading; PM10: 0~50μg/m³: ±7μg/m³; 50~200μg/m³: ±15% of reading Volume Flow: 6LPM Interface: RS485 and RJ45 Communication: Modbus-RTU, MQTT Operating Voltage: DC 24V±15% Working&Storage Conditions: 0°C~45°C & -20°C~60°C,0~95%RH (Non-condensing) Dimensions: 217*124*87 mm (Main body dimension)
