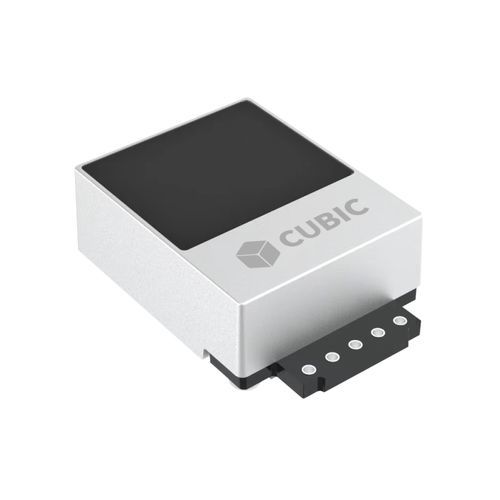

CH4 methane sensor CM1108UL-CH4

NDIRfor leak detectionmonitoring

Product Overview
Cubic CM1108UL-CH4 is a super low power NDIR methane (CH4) sensor specifically designed for battery-powered and portable gas detection applications.

CM1108UL-CH4 incorporates a super low power consumption design, and the average working current can be less than 30 μA. By adopting advanced non-dispersive infrared (NDIR) technology, the sensor delivers high accuracy and long-term measurement stability across its full detection range of 0–5% Vol. Matrix calibration across whole temperature and concentration range ensures consistent performance under varying ambient conditions, while the built-in auto-calibration function eliminates the need for routine maintenance. The sensor has a long lifespan of more than 10 years.

With the features of low power consumption, high accuracy, maintenance-free operation, and compact design, the CM1108UL-CH4 is ideally suited for battery-powered gas detectors, portable instruments, and other applications requiring reliable methane detection with minimal energy consumption.

Features

• NDIR technology
• High selectivity and strong anti-interference ability
• Super low power consumption, less than 30μA
• High accuracy up to ±0.15%Vol
• Temperature calibration within whole measurement range
• Auto-calibration, no need of maintenance
• Long lifespan over 10 years
• Small size and compact structure, easy for installation

Specifications

• Principle: NDIR (non-dispersive infrared) technology
• Measurement Range: 0-5%Vol
• Accuracy: ±0.15%Vol @0~2.5%Vol; ±0.25%Vol @ 2.5%~5%Vol
• Working Temperature: -10°C ~ 60°C
• Working Humidity: 0-95%RH (non-condensing)
• Storage Conditions: -20 ~ 70℃; 0~95%RH (non-condensing)
• Power Supply: DC 3.3V-5.5V
• Average Working Current: 30uA @4s; 23uA @8s
• Signal Output: UART_TTL
• Lifespan: >10 Years
• Dimensions33.5x19.7x9.1mm
