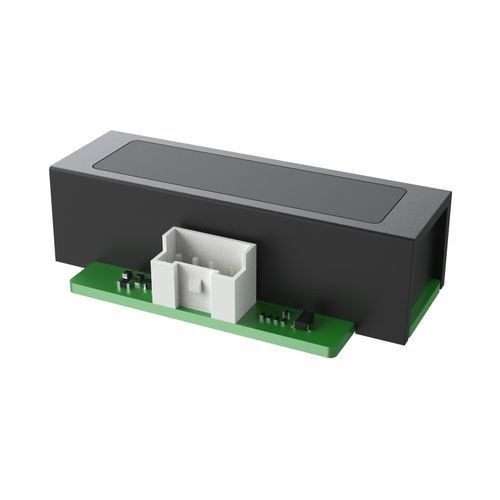

NDIR propane sensor BW-02-4CH

for leak detectionmonitoringcommercial

Product Overview
Cubic BW-02-4CH is an NDIR four-channel propane gas sensor designed for real-time monitoring of propane (C3H8) gas leaks in residential and commercial environments.

Based on NDIR technology, the BW-02-4CH offers high selectivity to propane without the risk of high-concentration poisoning commonly associated with chemical sensing methods. The four-channel design enhances anti-interference capability to ethanol, acetic acid, and other common gases, greatly increasing accurate measurements and eliminating false alarms, improving output reading's reliability.

The sensor delivers consistently accurate performance across the full temperature range and whole measurement range of 0 to 2.2% VOL with a resolution of 0.01% VOL, ensuring precise detection of low-level leaks as well as higher concentration hazards. Measurement accuracy reaches ±3% LEL within 0–30% LEL. With a fast response time, the BW-02-4CH enables in-time alarm warning.

The sensor has a long lifespan of over 10 years for long-term operation. With the exceptional performance, BW-02-4CH is well suited for a wide range of gas safety applications, including household gas alarms, restaurant gas leak detectors, portable gas monitor for liquefied gas collection stations, and other residential and commercial applications.

Features

• NDIR technology
• Four-channel design, high selectivity to C3H8 gas, immune to gas poisoning
• Strong anti-interference capability to ethyl alcohol and acetic acid
• Matrix calibration ensures high accuracy across operating temperature and measurement range
• Fast response and long term stability
• Long lifespan over 10 years
• Simple integration and maintenance free

Specifications

• Principle: NDIR (Non-Dispersive Infrared) technology
• Measurement Range: 0~2.2% VOL
• Accuracy: ±3%LEL@0~30%LEL, ±10% of reading @30%LEL~100%LEL
• Resolution: 0.01%VOL
• Response Time: T90≤30s
• Sampling Interval: 1 second
• Communication Protocol: UART@3.3V
• Working Temperature: -10℃~60℃
• Storage Temperature: -40℃~85℃
• Working Humidity: 0-95%RH (non-condensing)
• Storage Humidity: 0-95%RH (non-condensing)
• Power Supply DC: 5±0.5V DC
• Average Working Current: ≤100mA
• Lifespan: >10 Years
