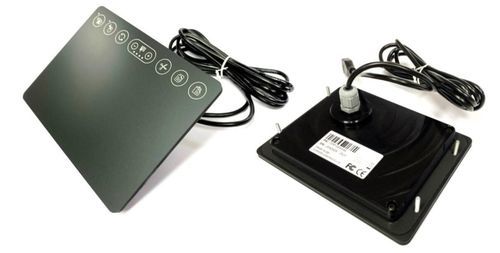

Touchpad for industrial applications TPP Seriesfor marine applicationsfor medical applicationsfor OEM
Add to favorites
Compare this product
Characteristics
- Domain
- for industrial applications, for marine applications, for medical applications, for OEM
- Material
- glass
- Protection level
- IP65, waterproof, rugged
- Mounting
- panel-mount
- Other characteristics
- USB
Description
Product overview
Cursor Controls Ltd has leveraged its industrial trackball expertise to develop the TPP Series panel-mount touchpad. This 6" Type 2 module delivers precise X/Y cursor control using a mutual-capacitance sensing engine designed for front-of-panel integration in OEM keyboards and consoles. The solid-state design enables operation and maintenance in demanding industrial environments.
Features
Typical applications
Product configuration / Ordering code
TPP-5 5 A 1 X 6
Technical specifications
Cursor Controls Ltd has leveraged its industrial trackball expertise to develop the TPP Series panel-mount touchpad. This 6" Type 2 module delivers precise X/Y cursor control using a mutual-capacitance sensing engine designed for front-of-panel integration in OEM keyboards and consoles. The solid-state design enables operation and maintenance in demanding industrial environments.
Features
- Mutual-capacitance solid-state touch sensing (no moving parts)
- Output: USB (plug-and-play)
- Sealing: IP65 (including back cover)
- Haptic and audible feedback (function-specific)
- Multi-finger gesture support
- 8 capacitive touch feature buttons (standard)
- Resilient performance in rugged environments
- Tolerant to moisture, water and liquid contaminants
- Standard overlay options: TPP Polyester Overlay (Grey), TPP Glass Overlay (Grey)
- Custom feature button configurations and overlays available
Typical applications
- Industrial consoles and HMIs
- Medical systems and instrumentation
- Marine control systems
- Custom keyboard and control-panel applications
- OEM bespoke solutions
Product configuration / Ordering code
TPP-5 5 A 1 X 6
Technical specifications
- Series / Model: TPP Series
- Touchpad size: 6 inch
- Output protocol: USB (plug-and-play)
- Sealing rating: IP65 (including back cover)
- Tracking engine: mutual-capacitance capacitive touch (solid state, no moving parts)
- Feature buttons: 8 capacitive touch feature buttons (standard set)
- Feedback: Haptic and audible feedback (function-specific)
- Gesture support: Multi-finger gestures supported
- Mounting style: Front-of-panel mount (designed for OEM keyboards and consoles)
- Overlay options: TPP Polyester Overlay (Grey) or TPP Glass Overlay (Grey); custom overlays available
- Environmental tolerance: Tolerant to moisture, water and liquid contaminants; designed for rugged/extreme environments
- Serviceability: Designed for easy cleaning, decontamination and maintenance
