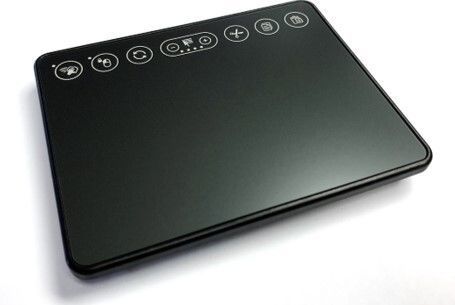

OEM touchpad TPP seriesindustrialmarinemedical
Add to favorites
Compare this product
Characteristics
- Domain
- OEM, industrial, marine, medical
- Material
- glass
- Protection level
- IP65
- Mounting
- panel-mount
- Other characteristics
- USB, switches
Description
Product description
The TPP series 6 in panel-mount capacitive touchpad delivers precise X/Y cursor control based on mutual-capacitance sensing. Designed for front-of-panel integration in OEM keyboards and consoles, the unit offers plug-and-play multi-finger gesture support, optional haptic and audible feedback, and a solid-state sensing engine with no moving parts. The design facilitates easy cleaning and decontamination for operation in demanding industrial environments.
Features
Typical Applications
Ordering / Configuration
Ordering code prefix: TPP. Variant keys select sealing rating, output protocol, integrated switches, mounting style, overlay colour/style, touchpad size and suffix. Example configuration format: TPP - 5 - 5 - A - 1 X 6.
Technical specifications
The TPP series 6 in panel-mount capacitive touchpad delivers precise X/Y cursor control based on mutual-capacitance sensing. Designed for front-of-panel integration in OEM keyboards and consoles, the unit offers plug-and-play multi-finger gesture support, optional haptic and audible feedback, and a solid-state sensing engine with no moving parts. The design facilitates easy cleaning and decontamination for operation in demanding industrial environments.
Features
- Mutual-capacitance capacitive sensing (solid state, no moving parts)
- USB output protocol
- IP65 front-panel sealing
- Haptic and audible feedback options (function specific)
- Plug-and-play multi-finger gesture support
- 8 capacitive feature buttons (standard)
- Various standard overlay options (glass, polyester)
- Tolerant to moisture, water and liquid contaminants
- Front-of-panel mounting for OEM integration
- Custom button layouts and overlays available
Typical Applications
- Industrial consoles
- Medical systems
- Marine systems
- Custom keyboard applications
- OEM custom solutions
Ordering / Configuration
Ordering code prefix: TPP. Variant keys select sealing rating, output protocol, integrated switches, mounting style, overlay colour/style, touchpad size and suffix. Example configuration format: TPP - 5 - 5 - A - 1 X 6.
Technical specifications
- Series / model: TPP series
- Touchpad size: 6 inch (example)
- Tracking technology: Mutual-capacitance capacitive touch sensing
- Axes: Conventional X and Y cursor movement
- Gesture support: Plug-and-play multi-finger gestures
- Output protocol: USB
- Sealing rating: IP65 (front of panel)
- Feedback: Haptic and audible (function specific)
- Feature buttons: 8 capacitive touch feature buttons (standard)
- Mounting: Front-of-panel mount for OEM keyboards and consoles
- Overlay options: Glass and polyester overlays (grey standard); custom overlays available
- Environmental tolerance: Designed for rugged environments; tolerant to moisture and liquid contaminants; allows cleaning and decontamination
- Customisation: Custom feature button configurations and OEM solutions available
