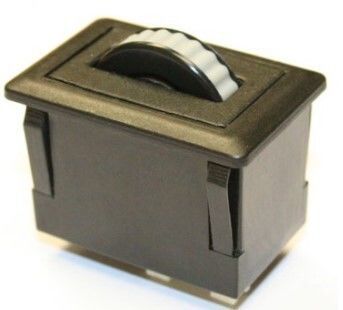

Rotary encoder module SWM-70110-0

Product description
The Scroll Wheel (top-panel) module is designed for front-face panel installation using integrated snap features in the plastic housing. It provides scroll, pan and middle-switch functions comparable to desktop scroll wheels, with configurable options for interface and feel. The module uses non-contacting Hall effect encoding and is sealed to IP68 for reliable operation in harsh environments.

Features

• Non-contacting Hall effect encoding
• Sealing up to IP68
• Integrated middle switch function
• Optional detent (cranked) scrolling mechanism
• USB & PS/2 (auto-select) or TTL quadrature output
• Smooth operation in rugged environments
• Multiple wheel colours available
• Custom mounting bracket options available

Typical applications

• Industrial control panels
• Military, marine and medical user interface panels
• Sound and lighting consoles
• Colour-correction consoles
• OEM custom solutions

Product configuration
Ordering and variants are managed via a configuration-code system. Example ordering code prefix: SWM.

• Ordering code example: SWM - 7 - X - 1 - 1 - 0 - X
• Sealing rating: options shown; default selection – IP68
• Output protocol: Quadrature (TTL) or Combined PS/2 & USB (auto-select)
• Detent options: Detent or smooth
• Mounting style: Front-panel mount (selected in this variant)
• Backlight: Options include no backlight
• Wheel colour: Black, Grey and other options

Technical specifications

• Technology: Non-contacting Hall effect encoding
• Environmental protection: Up to IP68
• Functions: Scroll, pan, integrated middle switch
• Optional: Detent scrolling mechanism
• Output interfaces: Quadrature (TTL) or Combined PS/2 & USB (auto-select)
• Mounting: Designed for front-panel installation using snap features; custom brackets available
• Colours: Multiple wheel colours available
• Typical uses: Industrial, military, marine, medical panels, sound & lighting, colour-correction consoles
• Ordering code prefix: SWM; product model reference: DSSW001
