Rotary encoder module SWM-7X110X

Product description

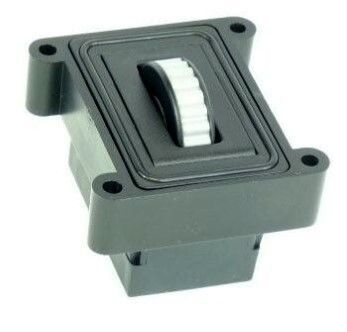

The Scroll Wheel (rear-panel) module DSSW001 is a human interface component providing scroll, pan and integrated middle-switch functionality for OEM keyboards and consoles. It uses non-contacting Hall-effect encoding and is sealed to IP68 for reliable operation in harsh environments. The module is designed for rear-panel mounting into industrial, military, marine and medical consoles.

Features

• Non-contacting Hall-effect encoding technology
• Sealing up to IP68
• Integrated middle switch (middle-button) function
• Optional detent scrolling mechanism
• Output options: TTL quadrature or combined PS/2 & USB (auto-select)
• Smooth operation in rugged environments
• Various wheel colours and custom mounting bracket options available

Typical Applications

• Industrial control panels
• Military, marine and medical user-interface panels
• Sound and lighting consoles
• Colour-correction consoles
• OEM custom control solutions

Product configuration

• Ordering code example: SWM-7 X 1 1 0 X
• Sealing rating: IP68 (default)
• Output protocol: Quadrature or Combined Interface - PS/2 & USB (auto-select)
• Detent options: Detent (default) or non-detent where applicable
• Mounting style: Rear-panel (back of panel) mount (default)
• Backlight: No backlight (default) — other options may be available
• Wheel colour: Grey or Black (other colours available)

Technical specifications

• Model identifier: DSSW001
• Human interface device providing scroll, pan and middle-switch functions
• Encoding: Non-contacting Hall-effect technology
• Environmental protection: Up to IP68 sealing
• Integrated middle switch
• Optional detent mechanism
• Output options: TTL quadrature or combined PS/2 & USB interface (auto-select)
• Designed for rear-panel mounting into OEM keyboards and consoles
• Intended for rugged environments; smooth operation under harsh conditions
• Available wheel colours and custom mounting bracket options
• Typical sectors: Industrial, military, marine, medical, sound & lighting, colour correction
