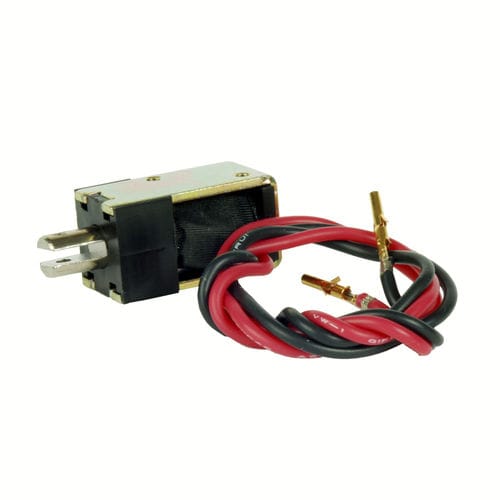

Permanent magnet solenoid GK0730

pull

Model GK0730 latching solenoid utilizes a permanent magnet in conjunction with a solenoid coil to maintain the position of the plunger with no current applied. Pull or thrust types available Permanent magnet latching Optional voltage ratings Ø7mm plunger 30mm x 15mm x 16mm frame size 100% power 5 Watts dc 0.5N force at 3mm stroke Latching solenoids are ideally suited to continuous duty applications, since even without power, the plunger and load will remain latched in the energized position. Applications for latching solenoids include automatic door closers, locks, latching mechanisms, medical equipment, security devices, and battery powered equipment.
