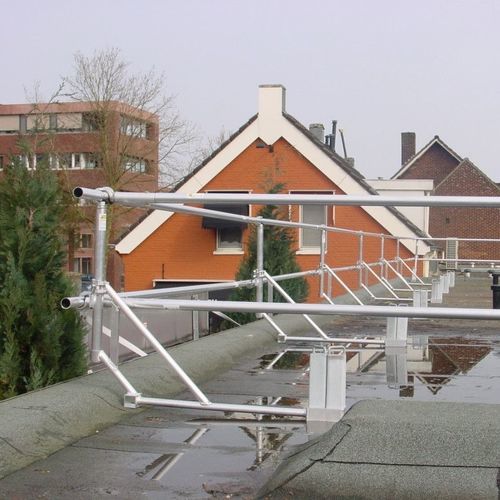

Metal roof roof edge protection

Custers Roof Edge Protection 2000 meets all the users' wishes: Minimum investment: a single universal system for all situations. Damage-free: click-connections for guardrails. Therefore, no plastic knobs. Anti-rust, steel cantilever weight. Therefore, no breakable concrete blocks. Only two specific roof edge articles: the all-in barrier frame and the universal guardrail tube. The frame hangs 20 cm above the ground thanks to ingenious suspension mechanism. Entire construction erected without the use of tools. Therefore, very fast to erect! No need for problematic guide rolls along (glass) façades. This system meets the requirements of NEN EN 13374 and is Class A . Fall protection must be used for a fall-height of 2.5m or more. The minimum length of a roof edge protection system must be at least 3m. Guardrails at 0.5m and 1m above the roof edge must be fitted with a space of less than 47 cm between the guardrails. Specifications Quick and simple to erect No roof anchorage needed Placement of 2 x 15kg ballast blocks in the base frame Maximum distance between frames is 3m Option of corner joints with help of railing connectors 20cm free space for the edge of the roof below the base frame Only 2 specific roof edge products: base frame and guardrail tube
