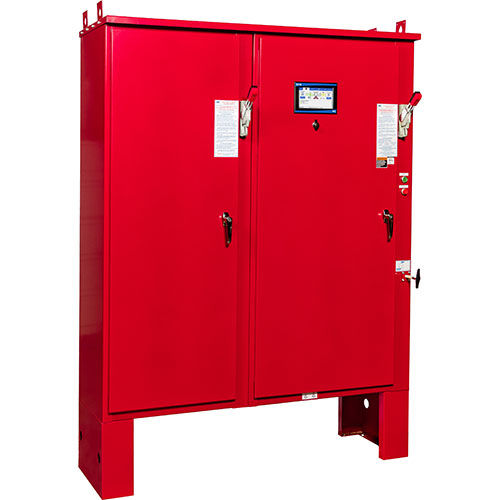

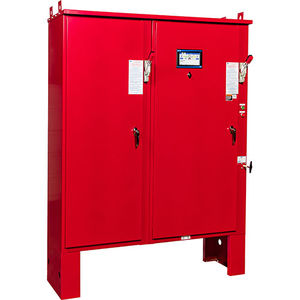

Automatic transfer switch controller FT60

The FT60 uses an auto-transformer inserted in the power supply to the motor to reduce the voltage at the motor terminals and to provide a smooth acceleration. The main contactor by-passes the autotransformer after a short acceleration time and applies full voltage to the motor terminals. Starting line current is 47% of the across-the-line starting inrush. All Eaton FT Series controllers are supplied as Dual Utility controllers and meet FM 1321/1323 approvals. Features 7” Color Touchscreen 800x480, high resolution display Fast processor reduces input lag Simplified tab system makes navigation and programming easier USB Port Downloads history, statistics, configuration, diagnostics, and startup files History can log up to 65,000 events Upload configuration to reduce programming time Update firmware Optional Boards Relay board provides four (4) One Form-C programmable output relays MODBUS board provides output communication via RS422 or RS485 Secondary 4-20mA device board provides additional connections for external pressure transducers, temperature sensors, etc. Alarm board provides a supervisory powered alarm outputs
