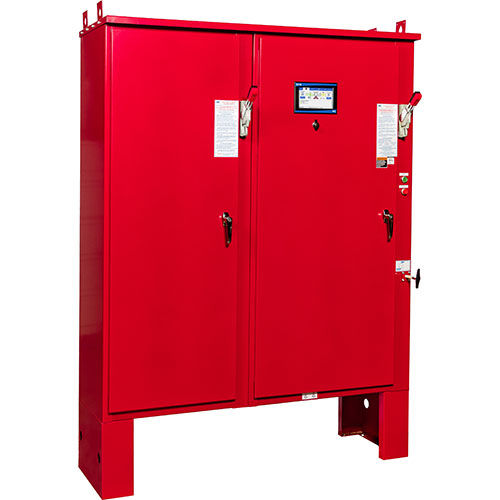

Automatic transfer switch controller FT20

The FT20 Limited Service Transfer Switch Controller can be used for motors 30HP or less, driving booster pumps or special fire service pumps where acceptable to the authority having jurisdiction. They are available with across-the-line starting only, with starting inrush current approximately 600% of rated motor full load amperes. All models are supplied with an LMR Plus microprocessor. Features 7” Color Touchscreen 800x480, high resolution display Fast processor reduces input lag Simplified tab system makes navigation and programming easier USB Port Downloads history, statistics, configuration, diagnostics, and startup files History can log up to 65,000 events Upload configuration to reduce programming time Update firmware Optional Boards Relay board provides four (4) One Form-C programmable output relays MODBUS board provides output communication via RS422 or RS485 Secondary 4-20mA device board provides additional connections for external pressure transducers, temperature sensors, etc. Alarm board provides a supervisory powered alarm outputs
