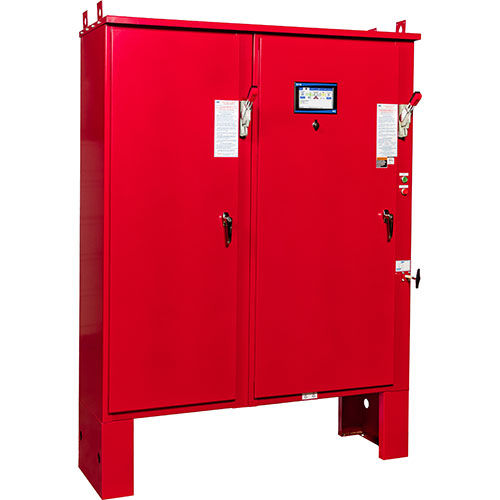

Automatic transfer switch controller FT40

The FT40 Transfer Switch Controller is a full service, part winding reduced voltage controller. A part winding fire pump controller reduces the starting current by up to 40% while maintaining up to 50% motor starting torque. The FT40 is the most economical method of reduced voltage starting, however, requires a special motor wound for part winding starting. All Eaton FT Series controllers are supplied as Dual Utility controllers and meet FM 1321 / 1323 approvals. Features 7” Color Touchscreen 800x480, high resolution display Fast processor reduces input lag Simplified tab system makes navigation and programming easier USB Port Downloads history, statistics, configuration, diagnostics, and startup files History can log up to 65,000 events Upload configuration to reduce programming time Update firmware Optional Boards Relay board provides four (4) One Form-C programmable output relays MODBUS board provides output communication via RS422 or RS485 Secondary 4-20mA device board provides additional connections for external pressure transducers, temperature sensors, etc. Alarm board provides a supervisory powered alarm outputs
