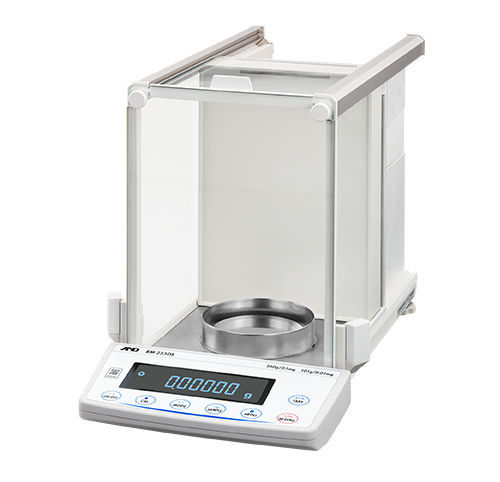

Laboratory semi-microbalance BM-S

electronicanalyticalmg

Overview
BM-S Series standard-level semi-micro balances providing 0.01 mg readability (with smart range function) and integrated conveniences for reliable semi-micro weighing. Key design items include an internal weight for automatic self-sensitivity adjustment (AD-Just), anti-static glass breeze break with transparent evaporated metal coating, two breeze break rings (including a high-profile ring for better draft protection), and selectable response characteristics to suit location drafts and vibrations.

Features

• 0.01 mg readability for up to 101 g (BM-255DS) with smart range function
• AD-Just — automatic self-sensitivity adjustment using the internal weight
• Anti-static glass breeze break (transparent evaporated metal coating)
• Two breeze break rings, including a high-profile ring for improved draft protection
• Internal repeatability test for quick performance assessment at installation location
• Selectable response characteristics: FAST / MID / SLOW
• User Access Control (UAC) with password lock and user rights management for up to 10 users
• Key lock function to restrict operation to PC command control
• GLP/GMP/GCP/ISO compliant output for documentation
• Clock and calendar function
• Data memory function
• Universal Flex Coms (UFC) to customize printout content and layout
• Gross/Net/Tare output
• Counting mode with Automatic Counting Accuracy Improvement (ACAI)
• Percent mode for target weighing or sample variation checking
• Density measurement mode (density display; tael or tola can be added upon request)
• Underhook for weighing magnetic materials and measuring density
• Multiple units of measure: g, mg, oz, ozt, ct, mom, dwt, gr, density (and optional tael/tola)
• Clearly visible reverse-backlit LCD
• Auto power ON and OFF functions
• RS-232C and USB Type-C interfaces as standard
• Optional BM-014 pipette accuracy testing kit

Icon summary

• Internal Weight
• Reverse Backlit LCD
• Bi-directional / Quick USB
• RS-232C Interface
• User Access Control
• GLP Compliant
• Date & Time
• Data Memory Function
• Counting (ACAI)
• Percentage Function
• Auto Power ON / OFF
• Underhook
• Universal Flex Coms

External Input/Output

• RS-232C interface
• Quick / bi-directional USB interface (switchable modes; virtual COM available with driver)
• External key input (jack socket)

Options

• BM-014: Pipette accuracy testing kit

Accessories

• AD-1653: Density determination kit
• AD-1671: Anti-vibration table for balances
• AD-1676: Tabletop breeze break (medium)
• AD-1683A: External ionizer
• AD-1684A: Electrostatic field meter
• AD-1687: Weighing environment logger
• AD-1688: Weighing data logger
• AD-1689: Tweezers for calibration weight
• AD-8129TH: Compact thermal printer
• AD-8526: RS-232C/Ethernet (TCP/IP) converter
• AD-8541-PC: Bluetooth® dongle for PC
• AD-8541-SCALE: RS-232C/Bluetooth® converter
• AD-8920A: Remote display
• AD-8922A: Remote controller
• AX-BM-031: Display covers (5 pcs)
• AX-BM-033: Dust cover for storage
• AX-BM-034: Microtube holder
• AX-CLEANING-SET: Balance cleaning set
• AX-HOLDER-SET-B: Sample cup holder set (antistatic)
• AX-SW137-PRINT: Foot switch for PRINT (with connector)
• AX-SW137-REZERO: Foot switch for RE-ZERO (with connector)
• AX-TRAY-10ML: Weigh boats (antistatic, 10 ml, 250 pcs)

Documentation
Brochure (PDF 2.1 MB); Manual (PDF 7.5 MB); Setup Instructions (PDF 1 MB)

Caractéristiques / spécifications techniques

• Models: BM-255DS and BM-125DS
• Capacity: BM-255DS: 101 g / 250 g (smart range function); BM-125DS: 51 g / 120 g (smart range function)
• Readability: 0.01 mg / 0.1 mg
• Repeatability (standard deviation): BM-255DS: 0.02 mg (for 50 g), 0.03 mg (for 100 g), 0.1 mg (for 250 g); BM-125DS: 0.03 mg (for 50 g), 0.1 mg (for 120 g)
• Minimum weight (typical): BM-255DS: 20 mg; BM-125DS: 24 mg
• Linearity: ±0.2 mg
• Stabilization time (typical when set to FAST): Approx. 8 s / 3.5 s
• Weighing pan size: Ø90 mm
