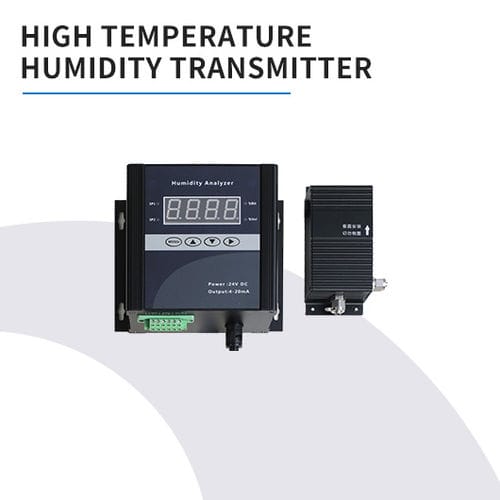

Humidity meter for the environmental industry DB460

industrialdigitalwall-mounted

Split Extractable Flue Gas Humidity Analyzer for High Temperature Environments DB460 humidity analyzer is widely used in CEMS in the flue gas humidity measurement.It can also be used for humidity measurement and control in wood,building materials, paper, chemical, pharmaceutical, fiber, textile, tobacco, vegetable and food processing. If you encounter low temperature, high humidity and high dust environment, our company will provide you with reasonable flue gas humidity solutions. Specification Measuring principle:capacitance Display mode:four digital tube display Measuring range:Volume ratio:0～40%VOL;Relative humidity:0～100%RH (only one mode can be displayed at the same time,please specify when ordering) Resolution:0.1% Measurement accuracy:<±1.5%FS Repeatability:<±1% Response time:T₉ <15S Working Temperature:Instrument:-10～+50°℃ Heat tracing type:Electric heat tracing(optional),heat tracing temperature:50℃~150°℃ Sampling mode:extraction type Analog output:4-20mA(non-isolated output,load resistance less than 500 ohms) Other interfaces:RS485 Power supply:DC 24V,power consumption<3A Protection:instrument box protection grade IP65 Sample gas components:no flammable gas,no strong corrosive gas Installation:wall-mounted APPLICATION Widely used in CEMS for the flue gas humidity measurement. It can also be used for humidity measurement and control in wood, building materials, paper, chemical, pharmaceutical, fiber, textile, tobacco,vegetable and food processing. If you encounter low temperature, high humidity and high dust environment, our company will provide you with reasonable flue gas humidity solutions.
