Relative humidity probe DHM200insertionduct-mountwall-mount
Add to favorites
Compare this product
Characteristics
- Type
- relative
- Mounting
- insertion, duct-mount, wall-mount, for integration, threaded
- Technology
- dew-point
- Output
- Modbus, 4-20 mA
- Supply voltage
- 24VDC
- Protection level
- corrosion-resistant
- Other characteristics
- stainless steel, with temperature measurement, high-precision, precision, with replaceable sensor, for weather stations, programmable
- Applications
- for high-temperature applications, for process applications
- Measuring range (%)
Max.: 100 %
Min.: 0 %
- Precision
2 %
- Measuring range (temperature)
Max.: 200 °C
(392 °F)Min.: -40 °C
(-40 °F)- Accuracy (temperature)
0.2 °C
(32.36 °F)- Working temperature
Max.: 200 °C
(392 °F)Min.: -40 °C
(-40 °F)
Description

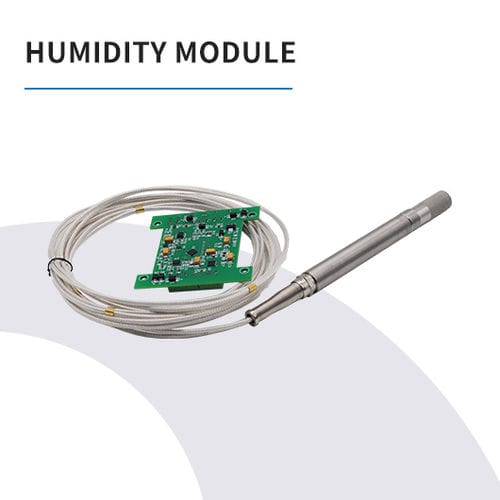

Humidity and Temperature Module DHM200 upto 200℃ for Environmental Chambers
Practically maintenance-free humidity module DHM200 is an open frame module intended for integration into environmental chambers and other chambers with high temperature tolerance. The modules provide analog 4-20mA and digital RS485 outputs for relative humidity (RH) and temperature(T) . It is resistant to chemical pollution and to high temperature upto 200℃ .
Specification
Measurement Range -
-Humidity: 0 ~ 100% RH
-Temperature: -40~200℃
Working Temperature -
-Probe: -40~200℃
-Transmitter: -40~70℃
Accuracy at 20~ 80 %RH & +25 °C(+77 °F) -
-Humidity: ±2%RH
-Temperature:±0.3℃
Response Time (T63) -
-Humidity: ≤15s
-Temperature: 30s
Outputs -
-Analog 4-20mA/Digital RS485
Power Supply Input -
-24 VDC
Probe Material -
-316L stainless steel
Maximum connection size -
-1.5mm²
Stem length -
-150mm standard.
Option: 52mm/87mm
