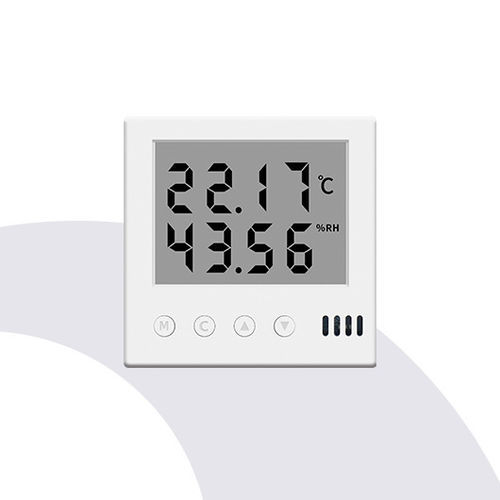

Relative humidity and temperature sensor DB506-97

embeddedwall-mountModbus

Product overview
DB506-97 humidity and temperature sensor provides accurate, reliable measurements with excellent long-term stability. It features a large dual-line LCD for simultaneous display of temperature and relative humidity or other humidity interpretations. Designed for embedded wall-mounted installation, the sensor offers programmable address, high accuracy and stable performance for real-time multi-point temperature and humidity monitoring and centralized management.

Core advantages

• Industrial-grade communication: Modbus RS485 interface, compatible with various industrial control equipment, instruments and host computers; stable and reliable.
• Ultra-long distance transmission: communication distance up to 1200 meters, enabling remote monitoring and control.
• Flexible networking: supports bus cascading of up to 32 devices for multi-point synchronous monitoring and large-scale centralized management.
• On-site direct reading: large display for intuitive, real-time temperature and humidity reading without additional equipment.

Applications

• Industrial workshops, warehousing & logistics, HVAC systems, intelligent buildings.
• Environmental monitoring, agricultural greenhouses, laboratories and other scenarios requiring multi-point temperature & humidity monitoring.

Technical Specifications
Parameter - Specification
Measuring Range - Humidity: 0% RH ～ 100% RH
Measuring Range - Temperature: -20℃ ～ 80℃
Measuring Accuracy (20% RH–80% RH @25℃) - Humidity: ±3.0% RH; Temperature: ±0.4℃
Interface - Modbus RS485
Response Time - 15 s
Programmable Address - 1 – 255
Baud Rate - 1200 – 38400
Power Supply - 12V DC – 24V DC
Power Consumption - < 4 W

Characteristics / Technical specifications

• Model: DB506-97
• Display: Large dual-line LCD for simultaneous T + RH display
• Communication: Modbus RS485
• Max communication distance: up to 1200 m
• Network capacity: up to 32 devices in bus cascade
• Accuracy: Humidity ±3.0% RH (20%–80% RH @25℃), Temperature ±0.4℃
• Measuring range: 0%–100% RH; -20℃–80℃
• Response time: 15 s
• Addressing: Programmable address 1–255
• Baud rates supported: 1200–38400
• Power: 12–24 V DC, power consumption < 4 W
