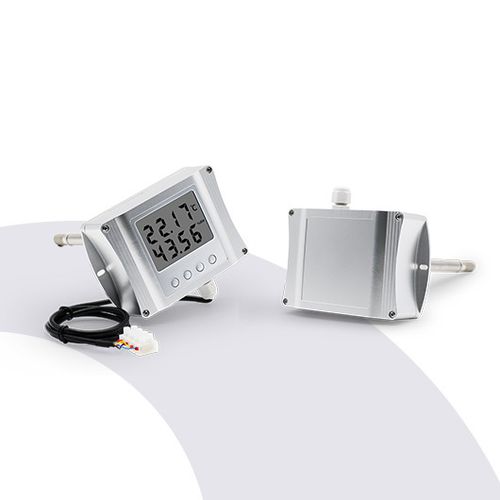

Relative humidity and temperature transmitter DB510F1Tduct-mountdew-pointRS-485
Add to favorites
Compare this product
Characteristics
- Type
- relative
- Mounting
- duct-mount
- Technology
- dew-point
- Output
- RS-485, 4-20 mA
- Supply voltage
- 24VDC, 12VDC, 15VDC, 9VDC, 36VDC, 32VDC
- Protection level
- waterproof
- Other characteristics
- high-precision, with integrated digital display, multi-sensor
- Applications
- air duct, for industrial applications, air, for building automation, for high humidity environment, for smart agriculture, for process applications, for air conditioning, storage, room, for grain
- Measuring range (%)
Max.: 100 %
Min.: 0 %
- Resolution
0.01 %
- Measuring range (temperature)
Max.: 120 °C
(248 °F)Min.: -40 °C
(-40 °F)- Resolution (temperature)
0.01 °C
(32.02 °F)- Working temperature
Max.: 120 °C
(248 °F)Min.: -40 °C
(-40 °F)
Description
The sturdy and reliable DB510-F1T sensor is designed for measuring air relative humidity and temperature in HVAC and climate chambers. Dew point can also be calculated. Its high accuracy, excellent measurement stability and reliable operation make it an ideal choice for applications where accuracy is of the utmost importance.
Measuring range:
Temperature: -40℃~120℃ (optional)
Humidity: 0~100%RH
Accuracy: (0%-90%RH @25℃)
Humidity: ±2.0%RH; Temperature: ±0.2℃
Stability： <1% RH/year, <0.1℃/year
Output signal： Analog 4～20mA/RS485 Modus RTU
Display：LCD dual channel display/without
Power Supply Voltage： 9-36VDC
Working temperature of Probe: -40℃~120℃ (optional)
Working temperature of Transmitter operating temperature: -20℃~60℃
Power consumption： lowest 2.4W
Output loading：R≤500Ω
Installation：Flange, threaded, Clamp, split, insert,duct-in
