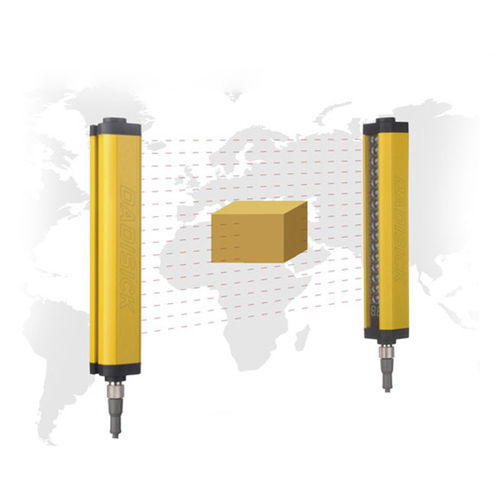

Measuring light curtain QL12/40-440

multibeamthrough-beamrugged

Product Features 1. Strong anti-interference ability: has good anti-interference ability to electromagnetic signal, strobe light, welding arc and surrounding light sources. 2. Easy to install and adjustable. 3. Surface mount technology for superior shock resistance. 4. IEC61496-1/2 standard of Type 4 and has passed CE certification, Type 2, Type 4. 5. QL serie safety light curtain use synchronous scanning to identify the blocked channels. 6. Setting options include 14 measurement modes, three scan modes, two analog and two digital outputs, and a serial communication output 7. Light curtain height range from 130 to 2620 mm 8. The array's infrared beam can detect objects as wide as 5mm wide (2.5mm resolution) 9. The controller function is built in the receiver, so the basic settings do not require a controller, software or personal computer 10. It is suitable for high precision detection and measurement, including size detection, contour detection, hole detection, edge and center positioning, counting, on-line product size detection.
