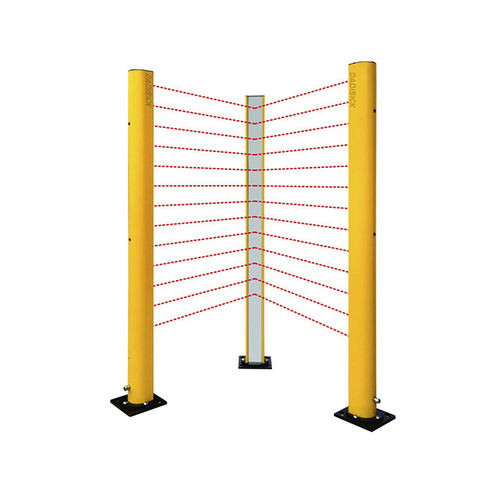

Access control light curtain QSA14/40-520
multibeamthrough-beamIP65

access control light curtain
access control light curtain
access control light curtain
access control light curtain
access control light curtain
access control light curtain
access control light curtain
access control light curtain
access control light curtain
Add to favorites
Compare this product


Characteristics

Function
access control
Type of beam
multibeam
Configuration
through-beam
Protection level
IP65
Other characteristics
infrared
Operating range

Min.: 0.3 m
(0'11" )

Max.: 10 m
(32'09" )

Description

Product Features 1. Perfect self-examination function: wrong signal will not sent to the appliance when the safety light curtain fails. 2. Strong anti-interference ability: has good anti-interference ability to electromagnetic signal, strobe light, welding arc and surrounding light sources. 3. Easy to install and adjustable, simple wiring and beautiful appearance in accordance with European design standards. 4. IEC61496-1/2 standard of Type 4 and has passed CE certification, Type 2, Type 4, TUV certificate, ISO9001:2015. 5. Short reaction time (≤20ms), Safe and reliable. 6. All electronic components of this product are produced by world-renowned brands. 7. Provide NPN/PNP output. User should ensure that the subsequent control circuit of the mechanical equipment is safe and reliable. 8. Serialized, various of type, detection height from 120-2480mm 9. Single sided/double-sided/three-sided infrared radiation can be made. 10.Have a wide range of protection and long distance.
