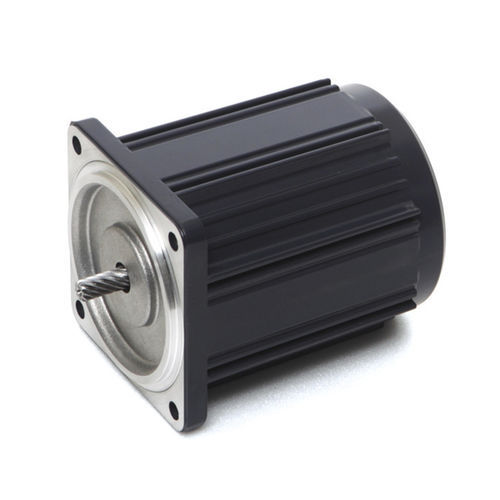

Single-phase torque motor E-T series
synchronous220 V100 V

single-phase torque motor
single-phase torque motor
single-phase torque motor
single-phase torque motor
Add to favorites
Compare this product


Characteristics

AC/DC
single-phase
Type
synchronous
Voltage
220 V, 100 V, 60 V
Configuration
small
Number of poles
4-pole
Power

3 W, 6 W, 10 W, 20 W, 40 W
(0.004 hp, 0.008 hp, 0.014 hp, 0.027 hp, 0.054 hp)

Intensity

Max.: 1.98 A

Min.: 0.14 A

Torque

Max.: 0.529 Nm
(0.3902 ft.lb)

Min.: 0.011 Nm
(0.0081 ft.lb)

Rotational speed

750 rpm, 900 rpm
(4,712.39 rad.min-1, 5,654.87 rad.min-1)

Description

TORQUE MOTORS - Torque regulation - High starting torque
