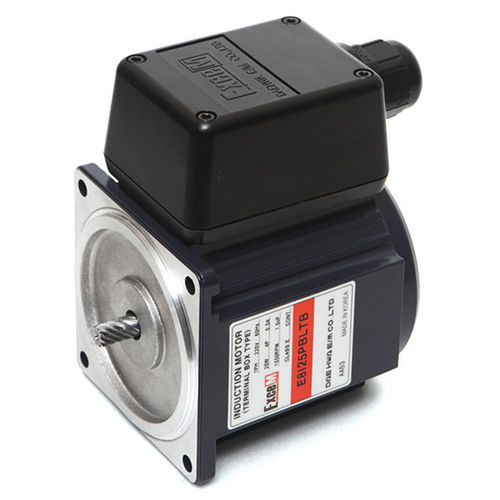

Induction motor E8I25 series
three-phase380 V440 V

induction motor
induction motor
Add to favorites
Compare this product


Characteristics

AC/DC
three-phase
Type
induction
Voltage
380 V, 440 V, 415 V, 220 V, 230 V, 240 V, 200 V, 100 V
Protection class
sealed
Number of poles
4-pole
Other characteristics
with built-in electronics
Power

25 W
(0.034 hp)

Intensity

Min.: 0.12 A

Max.: 0.57 A

Torque

0.152 Nm, 0.157 Nm, 0.181 Nm, 0.186 Nm, 0.191 Nm
(0.1121 ft.lb, 0.1158 ft.lb, 0.1335 ft.lb, 0.1372 ft.lb, 0.1409 ft.lb)

Rotational speed

1,250 rpm, 1,300 rpm, 1,350 rpm, 1,550 rpm, 1,600 rpm
(7,853.98 rad.min-1, 8,168.14 rad.min-1, 8,482.3 rad.min-1, 9,738.94 rad.min-1, 10,053.1 rad.min-1)

Description

TERMINAL BOX TYPE INDUCTION MOTORS - Sealed connector type
