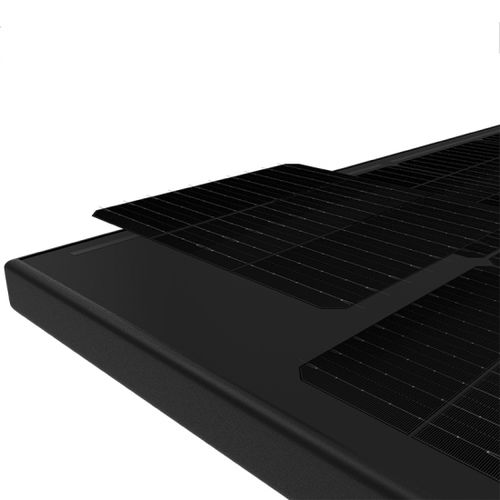

Monocrystalline silicon solar module DHM-T72X10/BF/FS-545~560W
CETUVblack

Add to favorites

Compare this product

Go to the DAH Solar Co., Ltd. website for more information

Characteristics

Material

monocrystalline silicon

Certifications

CE, TUV

Other characteristics

black

Peak power (Wp)

Max.: 560 W

Min.: 405 W

Open-circuit voltage

Max.: 75.1 V

Min.: 69.9 V

Short circuit current

Max.: 9.4 A

Min.: 7.5 A

Max power voltage

Max.: 63.4 V

Min.: 58.9 V

Max power current

Max.: 9.4 A

Min.: 7.5 A

Module efficiency

21.13 %, 21.3 %, 21.52 %, 21.72 %

Lenght

2,279 mm
(90 in)

Width

1,134 mm
(45 in)

Height

32 mm
(1 in)

Weight

28.9 kg
(63.71 lb)

Description

• Low current, increase power generation 1/3 design, lower current and lower loss. • Increase power generation by 6-15%+ Panel is capable to decrease power generation loss caused by Dust, reduce the hot spot risk. • Up to 20% generation gain from the rear-side The grid line transparent back sheet increases the back reflection, and the power generation gain increases with the back light. • More than 25% module weight lighter Compared with the dual glass module, the weight is reduced by 25%, which is easy to install and save the cost of BOS. • Longer power output life span Anti PID, low acetic acid concentration, ensure the module linear power output for 30 years. • Curved Surface 128°R Angle, Reduce holding pressure by 75%+ Curved Frame with ergonomic Design, optimized, Delivery and Installation Experience.
