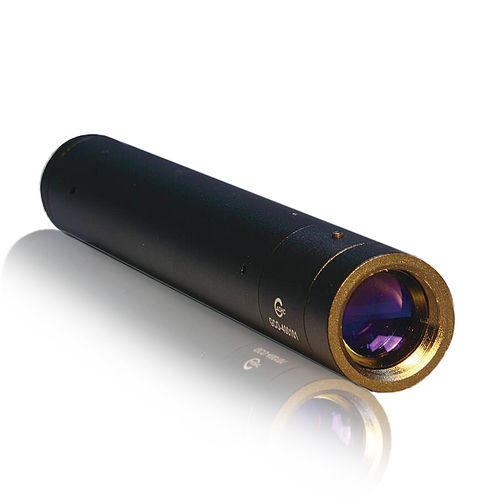

Beam shaping lens element GCO-400101

GCO-400101 is an advanced beam shaping lens, light beam go through a special shaping components to make a gaussian speckle transform into a flat spot. Working Distance continuously adjustable from 100 to 250 mm enables the focusing lens to achieve optimal illumination effects. The spot size varies with the working distance, while ensuring uniform light spot at different distances. ● An incidence of gaussian spot can be converted into a square flat spot. ● Different spot size can be obtained when operated at different working distance. ● The beam energy distribution is uniformity. ● Low power loss, high efficiency ● Design Wavelength：532 nm, 632.8 nm ● AOI: 0~15° ● Damage Threshold: 15J/cm2(10ns 10Hz 1064nm) ● Incidence spot diameter：φ4~5mm
