Hot water air heater unit UHH series

electric powersteamwall-mounted

Overview

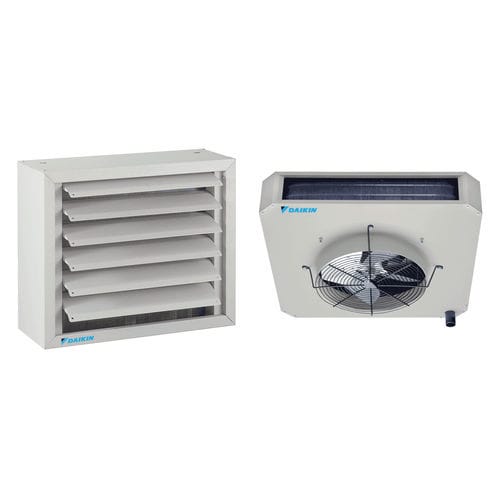

Daikin horizontal and vertical cabinet unit heaters (models UHH and UDH) deliver configurable heating for industrial and commercial applications. Horizontal units include adjustable horizontal louvers to modify heat throw and effective mounting height; vertical units discharge downward for high-ceiling or high-mount installations. Optional adjustable vertical louvers combined with horizontal louvers enable full directional control of heated air.

Models

• UHH
• UDH

Complete Directional Control of Air
Vertical units discharge downward to suit high-ceiling areas or locations requiring elevated mounting. When equipped with optional vertical louvers and standard horizontal louvers, the units provide complete directional control of airflow to target occupied or process zones.

Adjust Length of Heat Throw
Horizontal louvers on the air-discharge face are adjustable to lengthen or shorten heat throw and to alter effective mounting height. Four selectable air-distribution devices are available to produce distinct heat-throw and heat-spread patterns to meet specific application requirements.

Fan Operation Controls
Intermittent or continuous fan operation controls are available to match ventilation and heating strategies.

Performance

• 18 to 610 MBH
• 1/2 to 6 tons
• 310 to 12,350 cfm
• Sound class I–VII

Features

• 2-pipe applications, up to 150 psig steam or 220 psig, 375°F water
• Copper coils, 1/2" diameter, with aluminum fins (12 per inch)
• Horizontal louvers standard; vertical louvers optional on all models
• Intermittent or continuous fan operation controls (optional)
• Standard 115/60/1 PSC motors, enclosed with thermal overload protection
• 230/60/1; 200/60/3; 230/460/60/3 motors available
• Explosion-proof motors available (FUDX and FUHX models)
• Finger-proof fan guards standard
• Baked-on, textured paint finish
• Optional air deflectors: cone jet, truncone, louvers and 3- or 4-cone anemostat

Technical specifications

• Product type: Cabinet unit heaters (horizontal and vertical configurations)
• Model series: UHH, UDH
• Heat source compatibility: steam and hot water (up to 150 psig steam; up to 375°F water)
• Coil construction: copper tubes (1/2" diameter) with aluminum fins (12 fins per inch)
• Air distribution: adjustable horizontal louvers standard; vertical louvers optional; four selectable air distribution devices available
• Fan controls: intermittent or continuous fan operation options
• Motors: standard 115/60/1 PSC motors with thermal overload protection; other voltages and 3-phase options available; explosion-proof motor options for select models
• Safety/finish: finger-proof fan guards standard; baked-on textured paint finish
• Optional accessories: air deflectors (cone jet, truncone, louvers, 3- or 4-cone anemostat)
