Industrial refrigeration unit PATHFINDER®

stationarypassive cooling

Overview

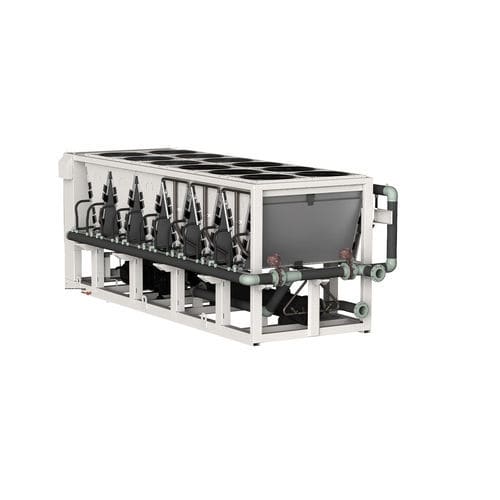

The Pathfinder® AWV is an air-cooled screw compressor chiller designed for high-efficiency commercial and industrial cooling applications. Available in capacities from 100 to 565 tons, the unit incorporates Variable Volume Ratio (VVR®) compressor technology, integrated VFD, and fully-variable-speed ECM fans to deliver high part-load performance and flexible system integration.

Key Features

• Fully configurable unit architecture and factory options
• Variable Volume Ratio (VVR®) compressor design for optimized efficiency across operating conditions
• Integrated compressor variable frequency drive (VFD)
• Fully-variable-speed ECM fan motors
• User-friendly MicroTech® controls for monitoring and integration
• RapidRestore® and Fast Loading modes for mission-critical sequences
• Compatibility with common building automation systems (BAS)
• Remote evaporator option to allow indoor evaporator installation and eliminate glycol in the building loop
• Factory testing to ensure trouble-free startup and reliable operation
• AHRI certification

Factory-Installed Pumps
Optional factory-installed pump packages are available for packaged and free-cooling models. These pump packages are powered and enabled by the chiller, removing the need to separately size, source, and install system pumps and accelerating site commissioning.

Integrated "Closed-Loop Free-Cooling" Water-side Economizer
The integrated water-side economizer uses a fluid-to-air heat exchanger in series with the chiller condenser airflow to dissipate heat outdoors without vapor-compression when ambient conditions permit. The closed-loop design can provide glycol-free solutions for data centers, hospitals, indoor agriculture, and manufacturing by employing an intermediate heat exchanger to minimize contamination risk beyond the unit.

Polypropylene Header Pipes
Pathfinder® polypropylene header piping reduces pressure drop and corrosion risk, offers UV protection for extended service life, simplifies access for maintenance, and decreases structural load compared with steel headers.

Performance

• Available capacities: 100 to 565 tons
• Refrigerants: R-513A or R-515B
• Voltage / Frequency: suitable for 60/50 Hz service
• IPLV rating capable of exceeding 22 EER

Awards & Recognition
Recognized with industry honors including the AHR Innovation Award and Frost & Sullivan Manufacturing Leadership Award; featured in Consulting-Specifying Engineer product awards.

Specifications

• Model: AWV
• Capacity range: 100–565 tons
• IPLV: capable of exceeding 22 EER
• Compressor technology: Variable Volume Ratio (VVR®) with integrated VFD
• Fans: Fully-variable-speed ECM fan motors
• Controls: MicroTech® controls
• Optional features: factory-installed pump packages, closed-loop water-side free-cooling, remote evaporator option
• Refrigerant options: R-513A or R-515B
• Electrical: suited for 60/50 Hz service
• Certifications: AHRI certified
• Service/testing: Factory testing for reliable startup
• Special construction: polypropylene header piping available
