3D profiler Z-Trak2

for the automotive industryfor semiconductorshigh-speed

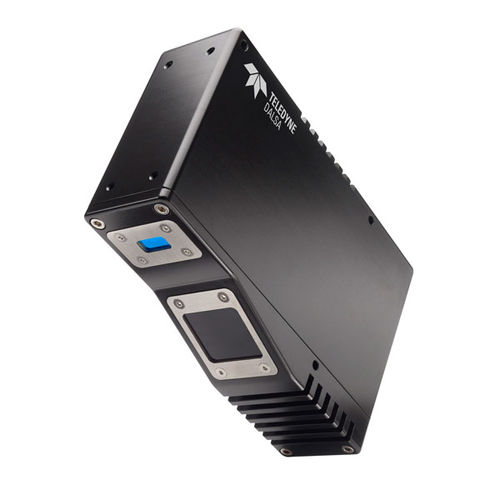

High-speed, in-line height measurement and inspection Z-Trak™2 is a new family of 3D profile sensors built on Teledyne Imaging’s 3D image sensor technology, ushering in a new era of 5GigE 3D profile sensors for high-speed, in-line 3D applications. Models deliver scan speeds of up to 45,000 profiles per second and features built-in HDR and reflection compensation algorithms to handle surfaces with varying degrees of reflectivity in a single scan. This delivers in-line height measurements for inspection, detection, identification, and guidance in electronics, semiconductor, automotive and factory automation markets segments. Delivering scan speeds of up to 45,000 profiles/sec Offering 2K points per profile, all Z-Trak2 models are factory calibrated and offered with either blue or red eye safe lasers to suit various surface properties and operating environments. All sensors are housed in IP67 enclosures for harsh environments and come bundled free with Teledyne Imaging’s Sherlock 8.1 —a point-and-click, rapid application development software package, Sapera Processing RTLs and Sapera LT SDK. FEATURES INCLUDE •Up to 2K points/profile; scan rate up to 45K profiles/sec •Built-in single frame HDR •360° inspection and occlusion removal •Handles varying surface reflectivity to deliver consistent results •Multi-Sensor Synchronization using single, low cost setup •IP67 enclosure for harsh operating conditions •Sherlock 8.1 for rapid application deployment •Red and blue models •Reflection compensation algorithms •Diffused or spurious topologies •1, 2.5 and 5GigE interface
