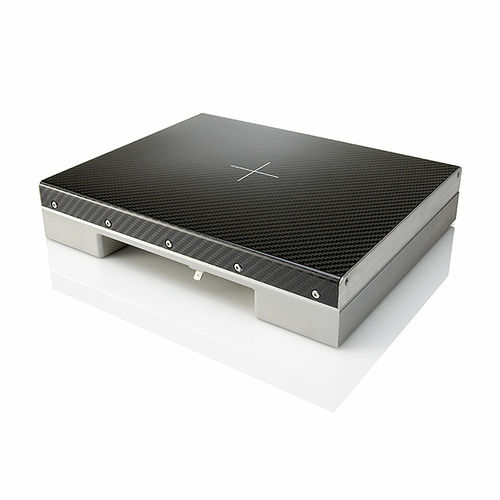

X-ray detector Rad-icon series

cablespeedCMOS

Great Performance, Ease of Use Teledyne DALSA’s Rad-icon product family of large-area digital x-ray cameras offers users a high-speed, high-performance x-ray imaging detector with a fast, reliable PC interface (either GigE or CameraLink) for easy integration. Cutting-edge Technology Delivers Cutting-edge Results The Rad-icon product family leverages our advanced CMOS image sensing technology, which enables the delivery of low-dose x-ray images and yields higher image quality than aSi flat panels and image intensifier devices. Rad-icon cameras are capable of frame rates up to 30 fps, and communicate via CameraLink data cable or a standard Cat 6e over lengths up to 100 m. Flexible and Adjustable for Varied Applications Rad-icon detectors are available with different Gd2O2S (Gadox) scintillator options to address a range of resolution and sensitivity requirements. The camera interface allows easy access to features such as adjusting the frame rate, single and multiple frame acquisitions, and control of advanced timing modes. Intuitive, Powerful Software Each Rad-icon ships with user-friendly software tools for stand-alone operation or easy integration with your application software. Features • Large active area: up to 30 × 30 cm • 5 or 10 lp/mm resolution (99 or 49.5 µm pixels) • Gigabit Ethernet or CameraLink interface • Energy range from 10 to 225 kV • Ready-to-run software and drivers
