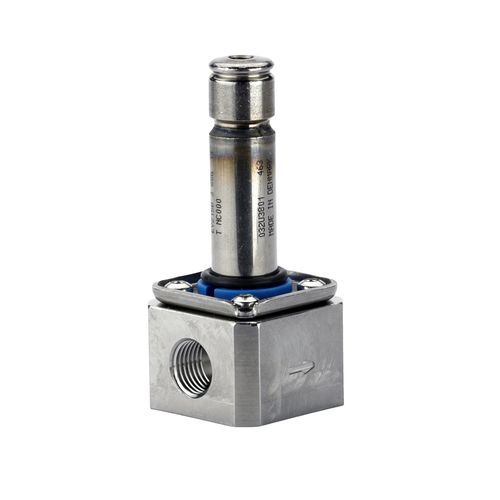

Direct-operated solenoid valve EV215B
2-wayNCwater

direct-operated solenoid valve
direct-operated solenoid valve
direct-operated solenoid valve
direct-operated solenoid valve
Add to favorites
Compare this product

Characteristics

Control
direct-operated
Ports/positions
2-way
Function
NC
Medium
water, for steam
Body
PTFE, threaded, stainless steel, IP65
Other characteristics
standard
Temperature

Min.: -10 °C (14 °F)

Max.: 185 °C (365 °F)

Pressure

Min.: 0 bar (0 psi)

Max.: 10 bar (145 psi)

DN

0.25 in

Description

Product name: Solenoid valve, Type: EV215B, Function: NC, Connection size [in]: 1/4, Connection type: G, Connection Internal/External: Internal, Cv value [gal/min]: 0.350, Kv value [m³/h]: 0.300, Seal Material: PTFE Gross weight 0.28 kg Net weight 0.26 kg EAN 5702428462952 Actuator B Actuator size 13.5 mm Actuator size [in] 0.53 in Actuator system [mm] 13.5 mm Ambient temperature max. [°C] 40 °C Ambient temperature max. [°F] 104 °F Body material Stainless steel Connection Internal/External Internal Connection material Stainless steel Connection size [in] 1/4 Connection standard ISO 228-1 Connection type G Cv value [gal/min] 0.35 gal/min Differential pressure [bar] [Max] 10 bar Differential pressure [bar] [Min] 0 bar Differential pressure [psi] [Max] 145 psi Differential pressure [psi] [Min] 4.351 psi Est. time to close, water [ms] 20 ms Est. time to open, water [ms] 20 ms Fluid Group I Function NC Kv value [m³/h] 0.3 m3/h Max media viscosity [cSt] 50 cSt Max. test pressure [bar] 15 bar Max. test pressure [psig] 217.5 psig Max. Working Pressure [bar] 10 bar Max. Working Pressure [psig] 145 psig Media tolerance comments Aggressive media Medium temperature range [°C] [Max] 185 °C Medium temperature range [°C] [Min] -10 °C Medium temperature range [°F] [Max] 365 °F Medium temperature range [°F] [Min] 14 °F Number of ways 2/2 Operation Direct-operated Orifice size [mm] 3 mm Orifice size fraction [in] 1/8 in Packing format Multi pack
