Low-noise air blower unit PowerVent 1500

compactpositive pressure

Product overview

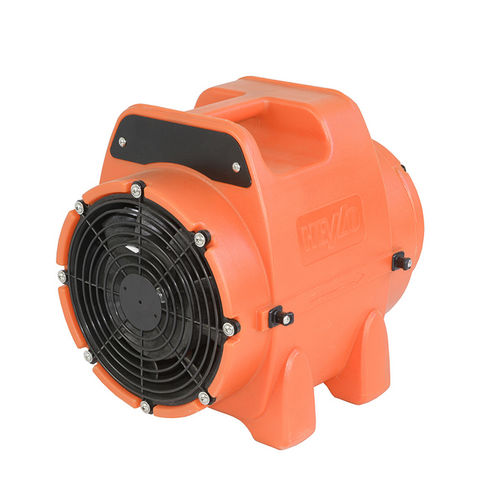

The axial ventilator Heylo PowerVent 1500 is designed for professional ventilation and drying tasks: shaft ventilation, drying of cavities after water damage, and extraction during welding in tanks or containers. The unit is compact, lightweight and set up quickly on site. The hose can be connected to either the outlet or inlet side.

Key features

• Applications: shaft ventilation, drying cavities after water damage, extraction during welding in containers
• Quick to assemble and disassemble
• Hose can be connected on outlet or inlet side
• Stackable for space-saving storage
• Electrical box protection class IP44 – suitable for outdoor use and construction sites
• High compression pressure
• Lightweight, quiet and compact
• Optional hose canister (CPC) contains 7.6 m of hose for fast fitting, removal, transport and storage

Product specifications
Air flow: 1,162 m³/h
Air pressure: 266 Pa
Fan: Axial
Blower stages: 1
Power consumption: 164 W
Power supply: 230/1ph/50 V/Hz
Outlet size: Ø 205 mm
Protection class: IP44
Product size (L x W x H): 380 x 310 x 350 mm
Box size (L x W x H): 350 x 400 x 380 mm
Net / gross weight: 8 / 9.5 kg
Pallet quantity: 24 pcs

Technical specifications

• Air flow: 1,162 m³/h
• Air pressure: 266 Pa
• Fan type: Axial
• Blower stages: 1
• Power consumption: 164 W
• Power supply: 230 V / single-phase / 50 Hz
• Recommended hose diameter: Ø 205 mm (hose canister 7.6 m)
• Protection class: IP44
• Product dimensions (L x W x H): 380 x 310 x 350 mm
• Box dimensions (L x W x H): 350 x 400 x 380 mm
• Net / gross weight: 8 / 9.5 kg
• Pallet quantity: 24 pcs
