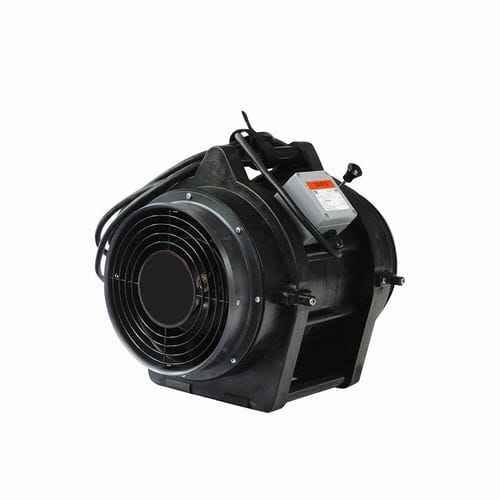

Portable fan UB 20xxATEXlow-noiseIP55
Add to favorites
Compare this product
Characteristics
- Type
- ATEX, low-noise, portable, IP55
- Configuration
- axial
- Function
- extraction, ventilation
- Supply voltage
- 230VAC
- Material
- plastic
- Other characteristics
- compact
- Air flow
1,392 m³/h
(49,158.016 ft³/h)- Diameter
205 mm
(8.071 in)- Noise level
74 dB
Description
Product description
The UB 20xx axial fan is designed for ventilation and gas extraction in explosive atmospheres such as filling stations, fuel depots, tanks and manholes. The antistatic housing construction conducts electrostatic charges to earth to prevent dangerous sparking. The motor and housing meet protection class IP55 for effective dust and water resistance. ATEX marking: Motor/Housing: II 2 G Ex db eb IIB T6 Gb; II 2 G Ex IIB T6 Gb — suitable for Zone 1 and Zone 2.
Key features
Technical data (summary)
Airflow: 1,392 m³/h
Pressure: 195 Pa
Fan type: Axial
Speed levels: 1
Power consumption (max): 250 W
Electrical connection: 230 V / 1ph / 50-60 Hz
Noise level: 74 dB(A)
Hose diameter: Ø 205 mm
Protection class: IP55
Product dimensions (L x W x H): 330 x 305 x 355 mm
Packing dimensions (L x W x H): 450 x 400 x 530 mm
Net/Gross weight: 8.2 / 15 kg
Palette quantity: 8 pcs
Application notes
Observe installation conditions and applicable hazardous-area regulations. If required, earth antistatic hoses. Devices with ATEX approval may be operated in Zone 1 and Zone 2; ensure correct classification of the area. The UB 20xx is intended for use with antistatic hose canisters and suitable earthing.
Shaft and channel ventilation
When natural ventilation is insufficient (for example due to location or covers), mechanical ventilation is required. Powerful fans deliver fresh air directly to the worksite and reduce risks from toxic gases or oxygen deficiency. As an indicative value, aim for at least 600 m³/h per m² of duct cross-section where applicable.
The UB 20xx axial fan is designed for ventilation and gas extraction in explosive atmospheres such as filling stations, fuel depots, tanks and manholes. The antistatic housing construction conducts electrostatic charges to earth to prevent dangerous sparking. The motor and housing meet protection class IP55 for effective dust and water resistance. ATEX marking: Motor/Housing: II 2 G Ex db eb IIB T6 Gb; II 2 G Ex IIB T6 Gb — suitable for Zone 1 and Zone 2.
Key features
- ATEX-certified axial fan for potentially explosive atmospheres
- Airflow: 1,392 m³/h
- Pressure: 195 Pa
- Robust antistatic plastic housing with earthing capability
- Protection class IP55 — dust and water resistant
- Compact, lightweight design and easy to transport
- Power: 250 W, Electrical connection: 230 V / 1ph / 50-60 Hz
- Low noise: 74 dB(A)
- Hose diameter: Ø 205 mm — connection via hose canister
- Approved for gas group IIB and operation in Zone 1 and Zone 2
Technical data (summary)
Airflow: 1,392 m³/h
Pressure: 195 Pa
Fan type: Axial
Speed levels: 1
Power consumption (max): 250 W
Electrical connection: 230 V / 1ph / 50-60 Hz
Noise level: 74 dB(A)
Hose diameter: Ø 205 mm
Protection class: IP55
Product dimensions (L x W x H): 330 x 305 x 355 mm
Packing dimensions (L x W x H): 450 x 400 x 530 mm
Net/Gross weight: 8.2 / 15 kg
Palette quantity: 8 pcs
Application notes
Observe installation conditions and applicable hazardous-area regulations. If required, earth antistatic hoses. Devices with ATEX approval may be operated in Zone 1 and Zone 2; ensure correct classification of the area. The UB 20xx is intended for use with antistatic hose canisters and suitable earthing.
Shaft and channel ventilation
When natural ventilation is insufficient (for example due to location or covers), mechanical ventilation is required. Powerful fans deliver fresh air directly to the worksite and reduce risks from toxic gases or oxygen deficiency. As an indicative value, aim for at least 600 m³/h per m² of duct cross-section where applicable.
