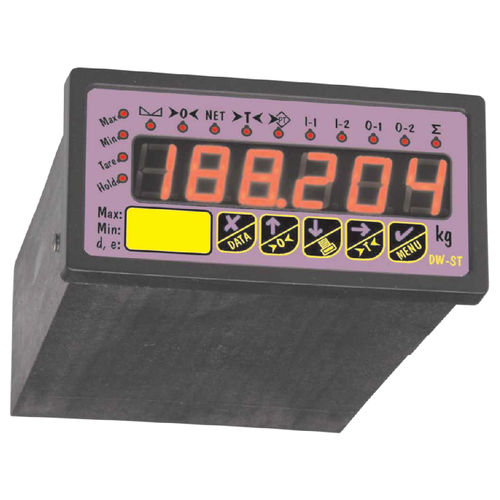

LED display weight indicator DW-ST
panel-mountEthernetwireless

LED display weight indicator
LED display weight indicator
Add to favorites
Compare this product


Characteristics

Display
LED display
Mounting
panel-mount
Other characteristics
Ethernet, wireless

Description

48 x 96 panel mount WEIGHING Indicator with setpoints and peaks control and totalizer • - Precision class: III - 6000d concerning EN45501 / OIML R76, 15000d not-for-trade. • - Load Cell Input with a 24 bits A/D Sigma-Delta converter. • - Enhanced protection against EMI (Electromagnetic interferences) • - 7 Segments Display of 6 Digits. • - 14 Led show the state of the indicator. • - 1 Serial Port RS232C or RS485 to communicate with PC, Printers or Remote displays. • - 5 Keys Keyboard to use and program the controller. • - Electronic and mechanical seal. • - Standard or configurable ticket through PC Utility. • - Modbus ASCII Protocol. • - Indicator with mV pre-calibration. • - Power Supply: 9..30Vdc / 9..24Vac • - Dimensions: 48x96x116mm. DW-ST/D FEATURES • - Idem DW-ST/B • - 2 PNP or NPN Opto-isolated Inputs. • - 2 Relay outputs DW-ST/F FEATURES • - Idem DW-ST/B • - 2 PNP or NPN Opto-isolated Inputs. • - 2 Relay outputs • - Opto-isolated analogical Output: 0-20mA, 4-20mA, 0-5Vdc, 0-10Vdc. OPERATING MODES • - Weight-Tare: Allow to display the weight of a scale, apply tares and untare. • - Setpoints & Peak Memory: Allow to manage two setpoints and calculate the peaks values. • - Accumulator: Allow to accumulate weights and number of weights. • - Transmitter: Allows to send load cell signals through RS232 or RS485 to any device.
