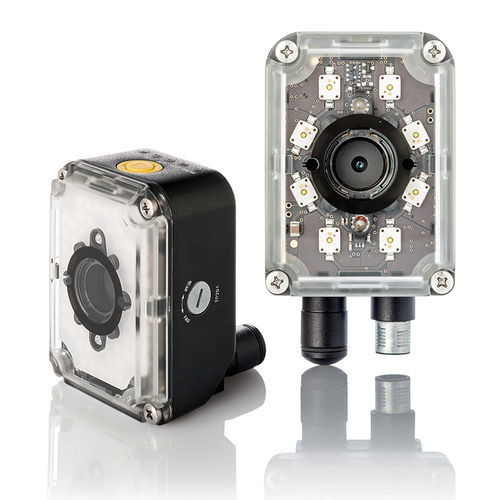

Ultra-compact cost effective smart camera offering advanced vision system functionalities in a fully embedded standalone device. The P1x Series is available with monochrome or color image sensors in two different resolutions: VGA and 1.3 MP.
• Imagers: VGA and 1.3 MP, CMOS mono or color
• Lens options: 6, 9, 12, 16, 25mm focal lengths
• Illuminators: Red, Blue, Infrared, White (polarized versions available)
• Digital I/Os: 2 IN / 3 OUT
• Connectivity: PROFINET, EtherNet/IP, ModBus, RS232, Ethernet TCP/IP
• Rotating connectors for straight vs 90° mounting
• IP67 rated housing
• Configuration through IMPACT Software
• Fully integrated ultra-compact device
• Rotating connectors for 0°& 90° form factor
• Rugged IP67 rated housing
• VGA and 1.3 megapixel resolutions
• Gray-scale and color CMOS sensor
• Interchangeable lenses, illuminators and filters
• Built-in Serial and Ethernet interfaces
• Powered by Impact Lite software
