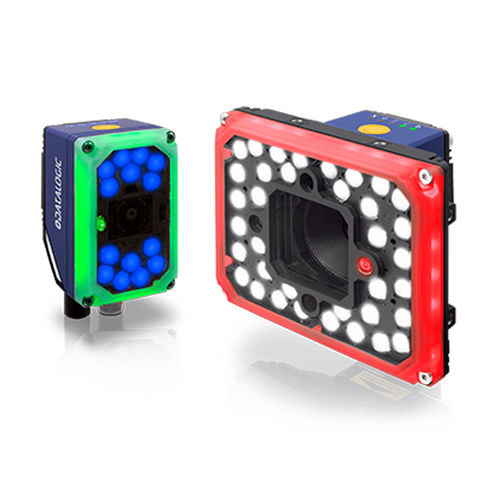

Smart camera P2X series

machine visionindustrialQHD

Industrial smart camera providing exceptional inspection performance in a compact housing. State-of-the-art CMOS imagers with resolutions up to 2 MP deliver maximum image quality. • Imagers: WVGA and 2MP, CMOS mono or color • Lens options: Micro-video (6, 8, 12.5 and 17.5mm) or C-Mount • Illuminators: Red, Blue, Infrared, White (polarized versions available) • Digital I/Os: 2 IN / 3 OUT • Connectivity: PROFINET, EtherNet/IP, ModBus, RS232, Ethernet TCP/IP • Rotating connectors for straight vs 90° mounting • IP67 rated housing • Configuration through IMPACT Software including advanced algorithms PUSHING POWER TO THE EDGE • qHD (960 x 540) and 2MP (1920 x 1080) resolution imager options both available in monochrome and color • Field interchangeable lenses, illuminators and filters • Two embedded illuminator sizes: 14-LED compact and 36-LED high power both integrating TIR lenses to deliver maximum brightness onto the field of view available in 3 different colors (white, blue and red) • Lens options: Micro-video (6, 8, 12.5 and 17.5mm) or C-Mount • Innovative 360° software configurable visual feedback • Top industrial grade: -10 to 50 °C / 14 to 122 °F operating temperature, IP65/67 rating • Powered by IMPACT software suite with 100+ inspection tools • Add-on licenses to run even the most advanced Datalogic algorithms
