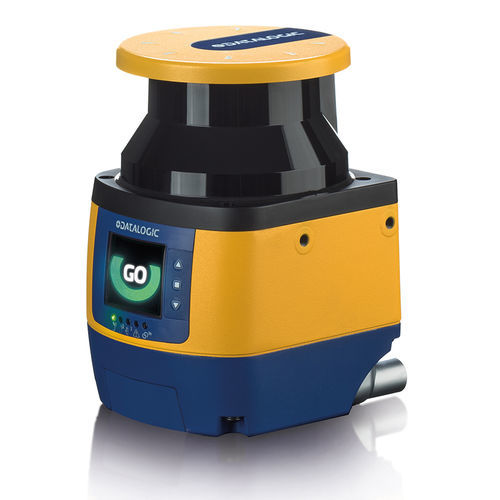

Laser scanner SLS series

XYZmeasurementbenchtop

Datasensing is pleased to announce a new special version of the Safety Laser Scanner Sentinel SV-5796 for use in critical industrial environments with the presence of sulfur-based gases. The presence of these gases can compromise the functional integrity of the devices with which they come into contact; by attacking the exposed electrical and electronic parts, they drastically reduce their average life-time, noticeably affecting the maintenance costs. Thanks to introduction of a conformal protective coating on all exposed electrical and electronic parts, the SLS SV-5796 allows you to maintain an excellent device life-time even in the most challenging environments. The effectiveness of the protection is certified by RTD competent body according to DIN EN/IEC 60068-2-xx standard:SLS SV-5796 in fact maintains the same excellent performance and functionality of the standard models from which it is derived, without any limitations.Due to its special features, SLS SV-5796 is particularly suitable in environments for the production and processing of rubber, in particular in tire production plants. • Type 3 / PL d / SIL 2 • Max. distance: up to 5.5 m (safe) for 70 mm resolution • Opening angle: 275° • Minimum response time: 62 ms • STANDALONE version: - pigtail with M12 connector - up to 6 switchable zone sets • MASTER-SLAVE version: - M12 connector - rotating connectors for programming and connection to slaves- safe communication between up to 4 scanners - up to 70 switchable zone sets • Programming, monitoring and measurement data: Ethernet • Dimensions (w,d,h): 102 , 112.5 , 152 mm • Auto/manual restart, EDM, partial dynamic muting, override, speed measurement, shut off
