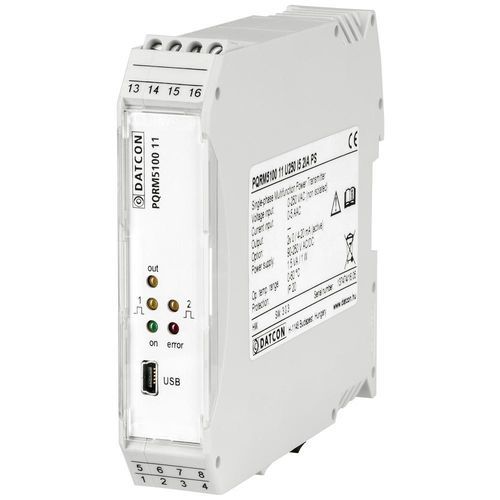

Multifunction power transmitter PQRM5100 11 series

single-phase

Product features

• Measuring of 12 different parameters
• 0-125 VAC / 0-250 VAC voltage input (CAT III)
• 0-5 AAC / 0-1 AAC galvanic isolated current inputs (CAT III)
• 2 × 0-20 mA / 4-20 mA galvanic isolated outputs
• RS485 communication, MODBUS RTU / ASCII Slave protocol
• 2 energy pulse outputs / limit outputs
• Configurable from PC via USB port
• 24 VDC ±10% or 230 V AC/DC ±10% power supply
• 22.5 mm width, TS-35 rail mounting

Product description
The PQRM5100 11 … Single-phase multifunction Power Transmitter suitable for the measuring of 12 different parameters of the singlephase power network:

• The TRMS values of phase voltage and phase current
• active power, reactive power, apparent power and power factor
• + active energy, – active energy, inductive energy, – capacitive energy
• frequency, phase angle.

The voltage inputs of the equipment are resistor networks (nonisolated) and the current inputs are isolated from the network with wideband current transformers. The current inputs 0-5 AAC or 0-1 AAC, and the voltage inputs 0-125 VAC / 0-250 VAC are in compliance with the requirements for measurement category CAT III.
The PQRM5100 11… is available with the following output options:

• 2 × 0-20 mA / 4-20 mA galvanic isolated, scalable, active analog current outputs *
• MODBUS RTU galvanic isolated communicatoin which makes possible the reading of all measurement values via the communication line, with a PLC or with a PC *.

(* only one option at the same time)
2 energy pulse outputs / limit outputs for limit-switching and for simple control tasks.
The measurement and output parameters are configurable from PC via USB port with the help of a user friendly configuration software. The configuration software is free of charge.
The PQRM5100 11 … has two power supply versions 24 VDC ±10% (PQRM5100 11 …) or 230 V AC/DC ±10%
(PQRM5100 11 … PS).

Technical specifications
Safety data:The connection terminals of the supply voltages are isolated from each other, the isolation is in compliance with EN 61010-1, pollution level: 2, measurement category: CAT III, overcurrent protection in instalation: 4A
Input parameters:

• Measured parameters: URMS, IRMS, P, Q, S, PF, φ, f, +EP, -EP, +EQ, -EQ
• Input voltage: 0-125 VAC / 0-250 VAC resistor network (specified at ordering)
• Input current: 0-5 AAC / 0-1 AAC galvanic isolated (specified at ordering)
• Overrange: 2 × I, 1.2 × U, 300 V (max.)
• Short overrange (1 sec.): 20 × I, 100 A (max.)
• Consumption of the input: 0.5 VA (max.)
• Frequency range: 40-80 Hz
• Error: 0.2%
• Refreshing time: 250 ms
• Temperature coefficient: 25 ppm / °C (max.)

Output parameters:
Analogue outputs (optional):

• Output type: 2 active current outputs (configurable, specified at ordering)
• Range: 0-20 mA / 4-20 mA (scalable)
• Burden: 500 ohm (max.)
• Refreshing time: same as the measuring time (2 s)
• Overcurrent: 20.8 mA
• Error: < 4 uA (23 °C ±2 °C) < 40 uA (-20 – +60 °C)
• Burden resistance effect: practically zero

Pulse outputs (optional):

• Output type: 2 galvanic isolated transistor, passiv switching transistor
• Rating: 30 V, 50 mA

MODBUS communication interface (optional):

• Interface type: RS485, galvanic isolated
• Baud rate: 300 / 600 / 1200 / 2400 / 4800 / 9600 / 14400 / 19200 / 32800 Baud
• Parity: even / odd / none
• Protocol: MODBUS RTU slave
• Address: 1-255
• Possible commands: 3 (register read)

Power supply:

• Supply voltage: 24 VDC ±10% PQRM5100 11 or 230 V AC/DC ±10% PQRM5100 11 PS
• Power consumption: 1.5 VA / 1 W

Galvanic isolation:

• Current power measure input: galvanic isolated, R < 20 mOhm
• Voltage power measure input: resistordivider, R = 1.6 MOhm
• Operating isolation voltage: 250 Veff (between measuring inputs and power supply input)
• Test voltage: 4200 VDC (1 min.) (between measuring inputs and power supply input), 500 VDC (between output-power supply terminals)

Ambient conditions:

• Operating temperature range: 0-60 °C
• Storage temperature range: 0-70 °C
• Relative humidity: 90% (max., non condensing)
• Place of installation: cabinet

Electromagnetic compatibility (EMC):accordance with the standard EN 61326-1:

• Immunity: industrial area
• Noise emission: Group 1, Class B

General data:

• Housing: terminal assembly box, rail mounting on TS-35 rail, material: polyamide PA6.6
• Connection: screw terminal
• Connection cable: 4.5 mm2
• (max.)
• Dimensions / weight: 22.5 × 108 × 114 mm (width × height × depth) / 0.17 kg (max.)
• Protection: IP20

Detailed information see in operating instructions. The Manufacturer maintans the right to change the technical data!
