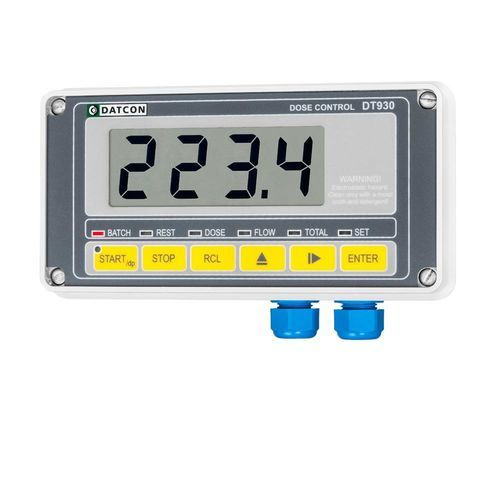

Dosing pump controller DT930

with alarm functionfor pump managementelectronic

Product features

• Measuring of dosed material quantities / rest material quantity still to be dosed / total dosed material quantity
• Measuring of material flow
• NAMUR / contact inputs
• 2 valve-controller, 1 pump-controller
• Automatic batch correction
• Remote operation with external push buttons
• TTY serial interface
• Large, 25 mm 4 digit or 17.8 mm 6 digit LCD display
• Intrinsically safe design
• Enclosure with IP65 protection; suitable

Product description
With help of impulse output flow-through detector connected to its input, the DT930 Dose Control Unit is suitable for accurate batching of fluids. The fluid quantity needing to be batched can be adjusted by means of tastature located on the front panel or, in remote controlled operating mode, through the communication interface.
The equipment has two valve regulating outputs and one pump regulating output, with help of which it is capable of performing many kinds of batching operational mode. On its large-sized display it indicates the material flowing rate, as well as the quantity of batched material, residual material and total batched material.
It may have an analogue output of 4-20 mA for transmission of the material flowing rate, as well as the quantity of batched- and residual material, and/or an impulse output for transmission of the quantity of batched material.
The outputs are scaleable.
The equipment is intrinsically safe it can also be operated in an potentionally explosive areas.
On account of its case with protection ratio of IP65 it can be installed near by the field of process, or it can be installed as panelinstrument.

Operations
Remote operation with outer push buttons
The push buttons for start (START), stop (STOP) and reload (RCL) can be led through and also be installed farther from the equipment, consequently the equipment can be protected against possible rough impact and push buttons can be placed at the most appropriate location for the operator.

Installation, remote operation with communication
The DT930 Dose Control Units can be connected to PLC, process control computer, via serial interface. The interface are galvanically isolated and suitable for bus system connecting of more equipment. The communication protocol Modbus provides an effective information exchange between the DT930 and the computer, PLC. Batching parameters can be downloaded, the batching process can be started and stopped, furthermore measuring results and error messages can be queried. The equipment knows both the protocol Modbus RTU and the protocol Modbus ASCII. A programme, running on PC, for testing the communication is provided by the manufacturer.

Measuring flow rate, as well as the quantity of batched material, residual material and total batched material
The push buttons for start (START), stop (STOP) and reload (RCL) can be led through and also be installed farther from the equipment, consequently the equipment can be protected against possible rough impact and push buttons can be placed at the most appropriate location for the operator.

2 valve regulating- and 1 pump regulating output, fine batching, automatic batch correction
Depending on the batching task and conditions the equipment DT930 can be applied in several ways.
One- or two valve operating method, pump controlled- or without pump operating method.
During two-valve operating method quick and accurate batching can be performed: the valve with high delivery value closes before the end of batching and the batching process is completed through the valve with low delivery value.
After stopping the batching the automatic batching correction measures the difference between the batch adjusted and the batch measured, and corrects it during the next batching.
The DT930 has a valve protection if during batching process the material flow is stopped due to any cause, then this protection suspends batching, closes valves and switches the pump off. After trouble shooting the batching can be completed.

Flow-through detectors
Almost all of flow-through detectors having impulse output can be connected to the input of DT930:

• contact
• NAMUR (line fault- and line break detection).

The parameter of the flow-through detector (impulse / quantity) and the time dimension of the flow rate (sec., min., h) can be adjusted on the equipment.

Technical specification
Safety data: The connection terminals of the supply voltages are isolated from each other, the isolation is in compliance with the standard
EN 61010-1, taking into consideration the following:

• Pollution level: 2
• Measurement category: II

Intrinsical safety data:

• Certification: BKI 15 ATEX 0036 X
• Protection marking: II 2G Ex ia IIC T4 Gb (-20 °C < Ta < +60 °C)

Input parameters:

• Digital inputs:
• Input: for the connection of NAMUR (DIN 19234) / contact / switching transistor
• No-load voltage / inner resistance: 8.2 V / 1 kohm
• Frequency range: 1 mHz–500 Hz

Outer push-buttons:

• Input: for the connection of outer push-buttons; 5 V / 1 kohm; 1 kohm (max.) / 150 kohm (min.)
• No-load voltage / inner resistance:
• Resistance of closed / open contacts:

Output parameters:
Analogue output:

• Output signal: DC current
• Range: 4-20 mA
• Overdrive: 10%
• Overvoltage protection: 8.6 V (limiter)
• Overcurrent protection: 50 mA (limiter)
• Error of the output signal: 0.5% (max.)
• Temperature-coefficient: 50 ppm / OC (typically)
• Supply-voltage effect: practically zero
• Loading-effect: practically zero

Digital outputs:

• Output: 4 passive switching transistor
• Load rating: 30 V, 35 mA, 200 mW

Communication interface:

• Interface type: TTY serial (independent intrinsically safe circuit)
• Protocol: Modbus slave, RTU or ASCII, 9600 Baud (max.)

Display:

• Display: 4 digit, 7 segments LCD with 25 mm character height; 6 digit, 7 segments LCD with 17.8 mm character height
• Display range: 0.000-9999; 0,00000-999999
• Accuracy: ±1 digit; ±3 digit

Power supply:

• Supply voltage: 18 VDC (intrinsically safe)
• Supply current: 70 mA
• Consumption: 1.4 W (max.)

Ambient conditions:

• Operating temperature range: -20 - +60°C
• Relative humidity: 90% (max., non-condensing)
• Place of installation: potentially explosive area

Electromagnetic compatibility (EMC) accordance with the standard EN 61326-1

• Immunity: industrial area
• Noise emission: Group 1, Class B

General data:

• Housing: polycarbonate box; it is installable also as a panel-instrument
• Connection: IP 65 cable entry
• Connection cable: 0.25-1.5 mm2
• Dimensions / weight: 167 × 87 × 95 mm (width × height × depth) / 0.8 kg
• Protection: IP65

Detailed information see in operating instructions. The Manufacturer maintans the right to change the technical data!
