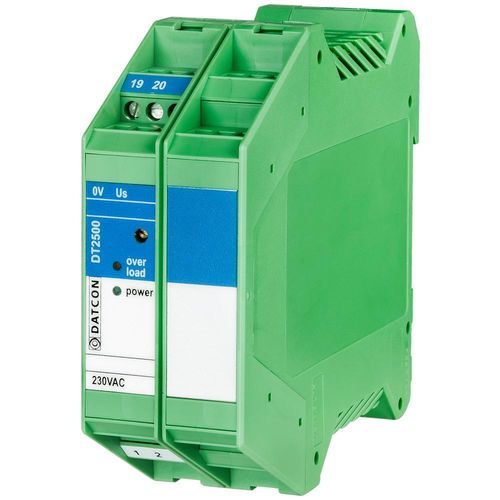

DIN rail power supply DT2500

AC/DCwith current limitingATEX

Product features

• Adjustable nominal output voltages within 6–24 VDC (6 / 8 / 10 / 12 / 15 / 18 / 24 VDC)
• Multiple type variants with specified Uo, Io, Po, Co, Lo parameters
• Intrinsic safety classification: II (2)G [Ex ib Gb] IIC or IIB; Certification: BKI 15 ATEX 0023 X
• Overcurrent protection (internal limiter) and overvoltage protection
• 230 VAC supply, 50/60 Hz; low consumption (9 VA)
• TS-35 DIN-rail mounting, 35 mm width; compact dimensions 35 × 99 × 115 mm
• Housing: polyamide PA6.6; screw terminal connection; IP20

Product description
The DT2500 intrinsically safe output power supplies deliver galvanically isolated, IS power for devices installed in Zone 1 potentially explosive atmospheres. The units are certified II (2)G [Ex ib Gb] IIC or II (2)G [Ex ib Gb] IIB (certification: BKI 15 ATEX 0023 X). A front-panel potentiometer allows adjustment of the output voltage within the ranges indicated in the type designation. The design supports flexible adaptation to the user’s requirements regarding gas group (IIC or IIB) and the Ci/ Li parameters of the connected apparatus.

Type designation (selection of available types and safety data columns)
Type | Uo [V] | Io [mA] | Po [mW] | Co [nF] | Lo [mH] | Co [nF] | Lo [mH]
DT2500 06 240 | 7.7 | 273 | 2102 | 300 | 0.15 | 1000 | 0.5
DT2500 08 240 | 11.2 | 273 | 3058 | 250 | 0.15 | 750 | 0.5
DT2500 10 190 | 12.4 | 224 | 2778 | 200 | 0.2 | 500 | 0.5
DT2500 12 150 | 15.1 | 178 | 2688 | 150 | 0.3 | 400 | 1.0
DT2500 12 60 | 15.1 | 80 | 1208 | 150 | 1.0 | 400 | 3.0
DT2500 15 120 | 18.8 | 145 | 2726 | 100 | 0.34 | 300 | 1.0
DT2500 15 50 | 18.8 | 70 | 1316 | 100 | 1.0 | 300 | 3.0
DT2500 18 70 | 22.4 | 91 | 2038 | 50 | 1.0 | 150 | 3.0
DT2500 18 40 | 22.4 | 58 | 1299 | 50 | 2.5 | 150 | 5.0
DT2500 24 50 | 30.0 | 70 | 2100 | 30 | 2.0 | 100 | 5.0
DT2500 24 25 | 30.0 | 42 | 1260 | 30 | 5.0 | 100 | 5.0

Technical specifications (extracted table)
Safety: output galvanically isolated from AC mains; isolation in compliance with EN 61010-1. Protection marking: II (2)G [Ex ib Gb] IIC/IIB (0 °C < Ta < +50 °C). Certification: BKI 15 ATEX 0023 X. Pollution degree: 2. Overvoltage category: II. Overcurrent protection in installation: 6 A.
Output parameters: output voltage and current — see type designation; overvoltage and overcurrent protection — see safety data; overcurrent: internal limiter with overload indication. Temperature coefficient: ≤ 250 ppm/°C. Supply-voltage effect: ≤ 0.25% (max.). Load effect: ≤ 0.25% (max.). Noise voltage: 10 mV + 0.002 × U (max.).
Power supply: 230 VAC, 50/60 Hz; consumption 9 VA. Ambient conditions: operating temperature 0–50 °C; relative humidity up to 90% non-condensing; installation in safe area (cabinet). EMC: EN 61326-1 compliant — immunity: industrial area; emission: Group 1, Class B.
General: housing — terminal assembly box for TS-35 rail, material polyamide PA6.6; connection — screw terminals; max cable 2.5 mm². Dimensions (W×H×D): 35 × 99 × 115 mm. Weight: 0.35 kg. Protection: IP20. Detailed information: see operating instructions. Manufacturer reserves right to change technical data.

Features / technical specifications

• Model / series: DT2500
• Intrinsic safety classification: II (2)G [Ex ib Gb] IIC or IIB
• Certification: BKI 15 ATEX 0023 X
• Nominal output voltages: selectable within 6–24 VDC; standard nominal values: 6, 8, 10, 12, 15, 18, 24 VDC
• Multiple variants with specified Uo, Io, Po, Co, Lo values (see type designation)
• Overcurrent protection: internal limiter with overload indication
• Overvoltage protection: provided (see safety data)
• Temperature coefficient: ≤ 250 ppm/°C
• Supply voltage: 230 VAC, 50/60 Hz; consumption: 9 VA
• Mounting: TS-35 DIN rail, 35 mm width
• Housing material: polyamide PA6.6; connection: screw terminal; max cable: 2.5 mm²
• Dimensions (W×H×D): 35 × 99 × 115 mm; Weight: 0.35 kg
• Protection class: IP20
• EMC: EN 61326-1 compliant; immunity: industrial area; emission: Group 1, Class B
• Operating temperature: 0–50 °C; relative humidity: up to 90% non-condensing
