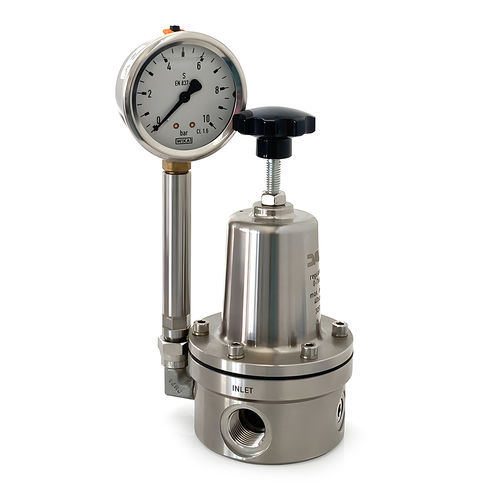

Sealant pressure regulator and reducer DAT 096
for vinyl gluemethacrylate adhesive (MMA)structural adhesive

Sealant pressure regulator and reducer - DAT 096 - DAV TECH Srl - for vinyl glue / methacrylate adhesive (MMA) / structural adhesive

Add to favorites

Compare this product

Go to the DAV TECH Srl website for more information

Characteristics

Product

for sealant, for vinyl glue, methacrylate adhesive (MMA), structural adhesive, single-component resin, grease, thermally conductive paste

Technology

diaphragm, spring

Material

stainless steel, PTFE, Viton®

Applications

hydraulic

Pressure

Min.: 0 bar
(0 psi)

Max.: 50 bar
(725.19 psi)

Description

The DAT 096 pressure regulator is used for the precise regulation of fluid pressure. The standard regulation range goes from 0 to 7 bar. This regulator is made of stainless steel, making it suitable for most fluids such as glues, adhesives, resins, etc. The diaphragm is made of Viton® and PTFE. The DAT 096 pressure regulator allows precise pressure adjustment in a fluid circuit. On the top part, there is the pressure adjustment system. By screwing, a spring is compressed, which activates a rod in the lower part of the device that, in turn, pushes a ceramic ball out of its sealing seat. This allows the material flow to be managed and dampens any pressure spikes. 1K resin 2K resin Epoxy adhesive Grease MMA adhesive Oil Sealant Structural adhesive Thermally Conductive Paste – Gap Fillers Vinyl glue Other
