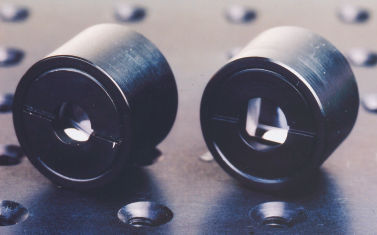

Glan-Taylor polarizer PGT series
visibleUVIR

Glan-Taylor polarizer
Glan-Taylor polarizer
Glan-Taylor polarizer
Add to favorites
Compare this product


Characteristics

Spectrum
visible, UV, IR
Options
optical, Glan-Taylor, circular
Wavelength

Min.: 190 nm

Max.: 4,000 nm

Description

Glan Taylor polarizer is made of two same birefringent material prisms that are assembled with an air space.Its length to aperture ratio which is less than 1.0 makes it a relatively thin polarizer.The polarizer with no side escape windows is suitable for low to medium power application where the side rejected beams are not required .The angular field of different materials of polarizers is listed below for comparison. Angular Field vs Wavelength Features Air-spaced Close to Brewster’s Angle Cutting High Polarization Purity Short Length Suitable for low to medium power application where the rejected beam is not required Material α-BBO,Calcite,YVO4 Extinction Ratio α-BBO:<5*10-6,Calcite:<5*10-5,YVO4:<5*10-6 Surface Quality 20/10 Scratch/Dig Beam Deviation <3 arc minutes Wavefront Distortion 200MW/cm2 Coating Single MgF2 Mount Black Anodized Aluminium
