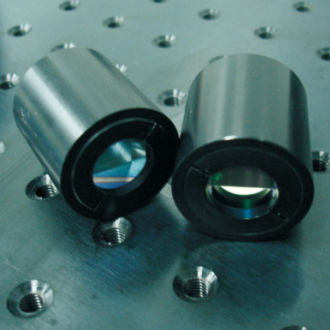

Glan-Thompson polarizer PGM series

visibleIRoptical

Glan Thompson polarizer is made of two calcite prisms or two a-BBO prisms cemented together . Two types of Glan Thompsons are available .One is the standard form and the other is the long form.Their length to aperture ratios 2.5:1 and 3.0:1 respectively.Glan Thompson polarizers tend to have higher extinction ratio than air spaced polarizers .In the ultra violet spectrum,their transmission is limited by absorption in birefriengent materials as well as the cement layer.a-BBO polarizers and Calcite polarizers can be used from about 220 to 900nm and 350 to 2300nm respectively. The polarizers have the widest field angle of any design.The standard form of this polarizer with 2.5:1 length to aperture ratio has a full acceptance cone angle of more than 15 °@589nm,symmetric about the input axis,while the long form with 3:1 ratio has a field angle>26°.The polarized field F1 and F2 of all these is shown in the plot below. Material α-BBO,Calcite Extinction Ratio α-BBO：<5*10-6，Calcite：<5*10-5 Surface Quality 20/10 Scratch/Dig Beam Deviation <3 arc minutes Wavefront Distortion 200MW/cm2 Coating Single MgF2 Mount Black Anodized Aluminum
