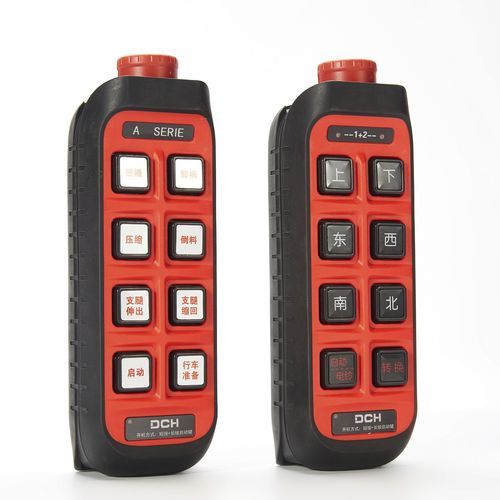

Wireless remote control DCH-A42 Series

with buttons10-buttonwith emergency stop

Transmitter-handheld A series Typical applications: Overhead Cranes Chain Hoist Mobile Hydraulic Grinder / Shredders Winches Conveyor Systems Hook loaders Concrete mixers Tow trucks Standard Features: Lightweight & Sturdy Competitively Priced Easily Operate Intelligence DCH iKey Single or Dual Speed Technical specifications: Dimensions： 180*65*50mm(8 buttons) 220*65*50mm (10 buttons) Weight： 350-380g Current consumption: operating on average 15ma Continue working time: 100h or 12days Start：short press+long press start button Antenna：internal Emergency stop：Conforms to EN13849-1 standard Enclosure material ：PA6+30%GF with rubber cover Protection degree： IP65(Enclosure type 4) Power supply: 3 pieces AA battery Buttons life: 5 million times Approximately operating range: 100m(328ft) Temperature range： -25℃~+70℃ (-13F to +158F) Humidity range: 0 - 97% maximum non-condensing Center frequency range: 433-434mhz; Response time:Less than 100ms Safety: Active and passive Stop function,Parity & Checksum Button text:options of arrow,English text, symbol or customized Power (RF Output): 10mW(e.r.p), Baud rate: 19200Kbps Push button Configuration: DCH-H2100 6 SIMPLE SPEED BUTTON ,Toggle function options DCH-H2200 6 DOUBLE SPEED BUTTON ,Toggle or a/b/a+b functions options DCH-H3100 8 SIMPLE SPEED BUTTON ,Toggle function options DCH-H3200 8 DOUBLE SPEED BUTTON ,Toggle or a/b/a+b functions options DCH-H4100 10 SIMPLE SPEED BUTTON ,Toggle function options DCH-H4200 10 DOUBLE SPEED BUTTON ,Toggle or a/b/a+b functions options DCH-H5100 12 SIMPLE SPEED BUTTON ,Toggle function options DCH-H5200 12 DOUBLE SPEED BUTTON ,Toggle or a/b/a+b functions options
