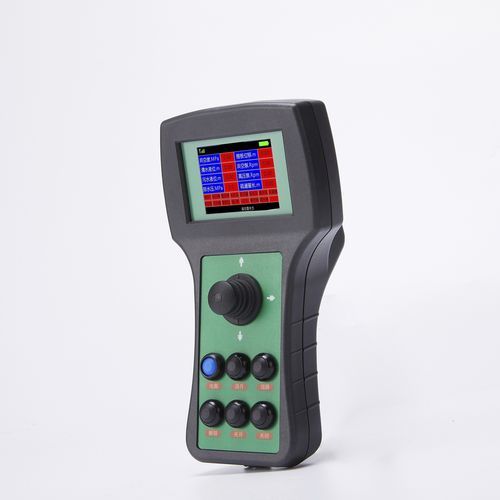

Wireless remote control DCH-C20 series

with configurable buttonsIP65for vehicles

Transmitter-handheld C20 series Standard Features: Lightweight & Sturdy Competitively Priced Easily Operate Intelligence DCH iKey Big Size LED Display Customized to application Typical applications: Crawler Crane Grinder AGV Sanitation Vehicle Construction Vehicle Train Locomotive Drilling Machinery Technical specifications: Dimensions: 200mm × 80mm × 40mm Weight: 500g-800g Antenna: internal Start mode: press the start button Emergency stop: Mushroom, complying with EN13849-1 standard Enclosure material ：PA6+30%GF Protection degree： IP65(Enclosure type 4) Operating range: 100m(328ft) Temperature range： -25℃~+70℃ (-13F to +158F) Humidity range: 0 - 97% maximum non-condensing Center frequency range: 433-434mhz Response time:less than 100ms Power (RF Output): 10mW(e.r.p) Baud rate: 9600Kbps Control options: up to 20 digital outputs (buttons, toggle switches, rotary switches, etc.) + up to 2 analog signals (potentiometer) Colour TFT screen: optional 3.5-inch 1024*600 pixels LED screen,be used to feedback battery power / signal strength and equipment operation status, such as speed, pressure, temperature, speed, oil temperature, etc Power supply:8.4vdc 2500mah rechargeable Li-iron battery internal Operating time: 24 hours after fully charged Battery charging time: 3-4 hours LED indicator: operation indication / fault status / battery power status Apo (automatic shutdown): standard 30 minutes (adjustable) Safety: Active and passive Stop function,Parity & Checksum Function Configuration: Model - Function Configuration: DCH-C2000 - Total 20 DO options DCH-C2001 - Total 20 DO and 1 AO options(potentiometer ) DCH-C2002 - Total 20 DO and 2 AO options(potentiometer )
