Rotary cutting machine E-RDC
diefor paperfor cardboard

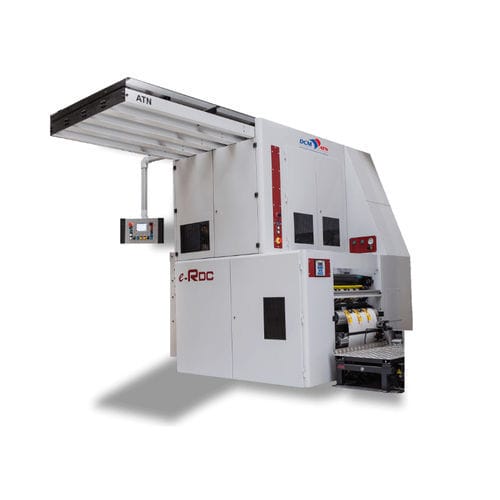

Rotary cutting machine - E-RDC - DCM ATN - die / for paper / for cardboard
Rotary cutting machine - E-RDC - DCM ATN - die / for paper / for cardboard
Add to favorites
Compare this product
Go to the DCM ATN website for more information

Characteristics

Technology
rotary, die
Material
for paper, for cardboard
Product handled
sheet, label, for packaging
Control type
PLC-controlled
Associated function
embossing, creasing
Applications
for industrial applications, for the food industry, for packaging
Other characteristics
automatic, high-speed, universal

Description

Rotary die cutting unit, modular with 3 or 4 stations, may be inline with printing line or offline. The most economic solution for the converting of high volume cardboard blanks. Quality of embossing, creasing and cutting is optimal and constant. Fast job change over using cassettes. TECHNICAL DATA • Maximum reel width : from 660 to 850mm • Dei tooling repeat length : • For widths 660 - 720, from 535 to 800mm • For widths 760 - 850, from 690 to 1040mm • Maximum production speed : 250m/min Inline or offline installation With non-stop unwinder Insetting 3 or 4 converting stations : - Embossing - Debossing - Creasing - Cutting Shingle delivery Automatic piling (stacker) Options : - Insetting - Stacker, sheeter - High-pile delivery APPLICATIONS • Tobacco packaging hard-pack and soft-pack • Liquid packaging • Fast food • Cardboard cups and other folding cardboard packaging.
