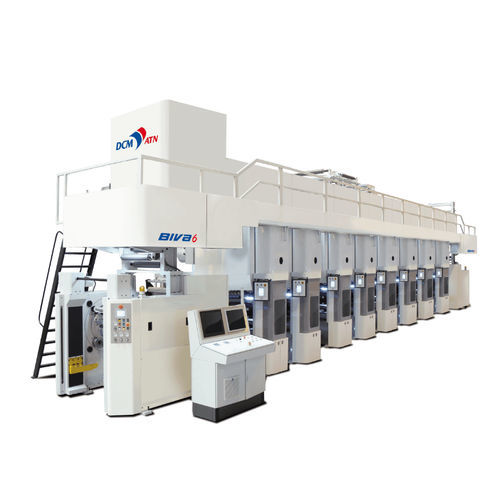

Rotogravure printing press BIVA

for paperfor cylindrical objectscolor

Narrow web rotogravure printing press for paper and films. Best printing quality thanks to narrow web concept : - rapid format change - small size light-weight printing cylinders - light-weight tools easy to manipulate - reduced waste on restart - high printing speed - only two operators are required to run the machine - no additional staff for cleaning and handling TECHNICAL DATA • Web width : from 680 to 820mm • Print format : from 300 to 600mm or 350 to 800mm • Maximum production speed : from 400 to 600m/min • Non-stop unwind and rewind • 1 to 10 printing units • Hot air dryers 3 to 6 meters • Easy tools replacement on side • Sleeve type printing cylinders • Removable ink trays • Easy change-over doctor blade Options - Static electricity discharge bar - Web preheat - Web humidificator - Corona treatment - Turning bar - 100% Inspection camera APPLICATIONS • Fresh products bags, Dry groceries packaging • Butter and cheese and Ready-made dished packaging • Frozen food and Pharmaceutical packaging • Labels for beverages, Soft cigarettes packs • Cosmetics, perfumes, hygiene, soaps packaging MATERIALS • OPP from 15 to 75µ • BOPP from 15 to 75µ • PET from 12 to 50µs • Shrinkable PET and PETG from 35 to 80µ • Rigid PVC (shrink film) from 35 to 80µ • Paper from 40 to 110 g/m²
