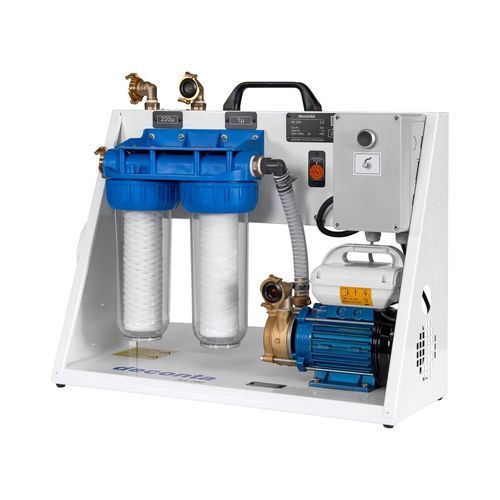

Absorption filter unit AS200

water

Asbestos fiber-contaminated wastewater is cleaned via a 2-stage filter unit consisting of pre-filter 220 µ and fine filter 1 µ or 5 µ. An integrated sewage pump starts automatically when water is taken from the shower water outlet (with the fresh water inlet connected). The entire unit is located in a powder-coated housing with commercially available Geka connections. Technical data Weight: 16.0 kg Power connection: 230 V / 50 Hz Personal protection: FI switch 30 mA Hose connections: System Geka Flow rate of fresh water inlet: min. 2 l/min Sewage pump: Voltage: 230 V / 50 Hz Power: 0.45 kW Maximum flow rate: 28 l/min max. Medium temperature: 90 °C Protection class: IP44
