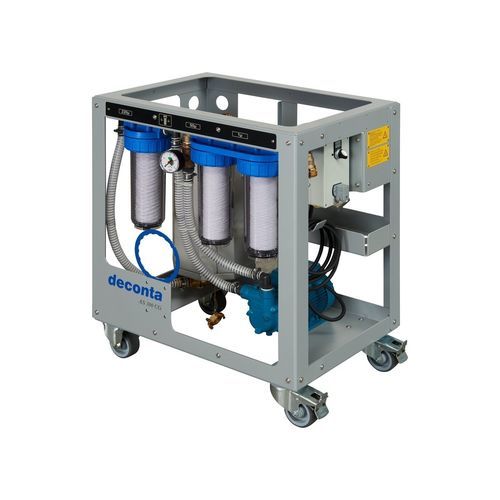

Bag filter unit AS300CG

suctionwater

The 4-stage filtering unit is used to clean sewage water contaminated with asbestos fibres. The filtering unit contains a coarse- pre filter (Bag filter 220 µ), pre-filter 220 µ, fine filter 50 µ und fine filter 1 µ. In case of heavily polluted sewage water the coarse - pre filter protects the succeeding filter stages against severe contamination. The condition of the filter is monitored via a manometer. The entire unit is embedded in powder coated aluminium housing with standard GEKA connections. 4-stage filtration unit with housing Bag filter 220µ (reusable) Pre filter 10“ 220µ (disposable) Fine filter 10“ 50µ (disposable) Fine filter 10“ 1µ (disposable) Filter control with Manometer Sewage water pump 30 l / min, self-priming, protected against dry-running Hose connection System Geka 2 fixed castors and 2 steering castors with lock Safety switch ON / OFF Switch Suction hose (Length 5m) with proximity sensor for an electrical ON / OFF switching Power supply: 230 V Pump capacity: 0,45 kW Dimensions (L x W x H): 655 x 462 x 775 mm Weight: ca. 56 kg
