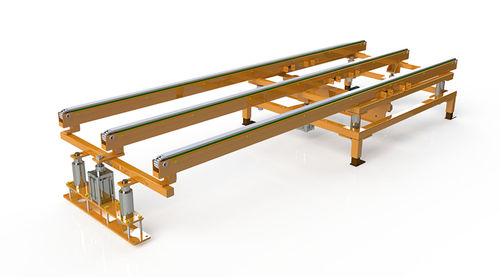

Battery-powered transfer unit

90° tranfer unit on conveying lines. Conveyors are designed to transfer wood or plastic pallets 90 degrees in process. Mounted within a roller conveyor. Roller takes the short edge ahead on the conveyor and lifts the pallet above the roll level and provides transfer to the chain conveyor with long side ahead or vice versa, the long edge allows the transfer of the leading product to the roller conveyor. The 3-row chain spacing aligns the wedges on the pallet for safe transport and ensures the stability of the pallet. Benefits • Low maintenance cost • Long life • Low noise level • Easy installation • Assembly on roller conveyor with modular design • Possibility of manual intervention on conveyor in case of emergency (pallet truck, forklift etc.) Technical Features • Pallet Dimensions 800×1200 mm • Speed 12-30 m/min • Ambient Temperature 5-50 °C • Motor Power 0,75 kW • Voltage 380 V AC • Min. Conveyor Height 300 mm • Max. Capacity 1500 kg Convenient for • Tobacco • Fast Moving Consumer Goods • Agriculture • Logistics • Automotive • Furniture • Construction Materials • Medicine • Textile • Packaging
