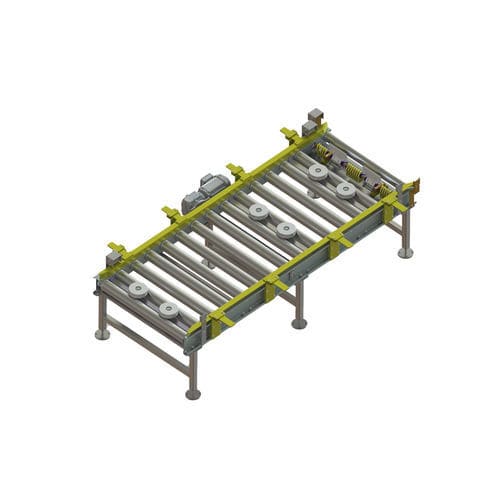

Conveyor control system

Automatic control mechanism on the conveyor. In addition to the control of the pallet base, as an option laser sensor scanning unit can be added to determine whether the products on the pallet are slipped, irregular or in the required dimensions. The unit checks the rigidity of the pallet base, the height control of the products on the pallet, the width control and the stack accuracy control. Appropriate values can be entered on a screen or read automatically with a barcode reader at the input system check is performed. When the system detects that the products on the base or on the pallet are different than the desired values, it can stop the system or transfer the pallet out of the system automatically. Benefits • Securing the line • Securing transported products • Ensuring work safety • Low maintenance cost • Pallet control without stopping the line • Long life cycle • Low noise level ( < 70 DB ) • Ease of installation and revision because of modular structure Technical Features Pallet Dimensions 800×1200 mm Speed 12-30 m/min Ambient Temperature 5-50 °C Motor Power 0,37 kW Voltage 380 V Min. Conveyor Height 300 mm Max. Capacity 1500 kg Convenient for • Tobacco • Fast Moving Consumer Goods • Agriculture • Logistics • Automotive • Furniture • Construction Materials • Medicine • Textile • Packaging
