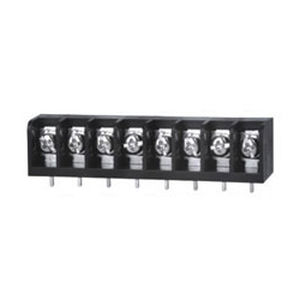

Printed circuit board terminal block DG46R-Bscrew connectionbipolar
Add to favorites
Compare this product
Characteristics
- Mounting
- for printed circuit boards
- Connection
- screw connection
- Other characteristics
- bipolar
- Cross-section
4 mm²
(0.01 in²)- Current
20 A, 32 A
- Nominal voltage
300 V, 450 V
Description
Electrical
Standard
UL
IEC
Wire range
22-12AWG
4.0mm2
Withstand Voltage
AC2000V/Min
Insulation Resistance
500MΩ/DC500V
Mechanical
Max.Torque Value
1.2N.m 10.6Lb.in
Ambient temperature
-40°C~+105°C
Dimensions
Pitch
9.5mm(.375")
Poles
2P-24P
Material
Housing
PA66 UL 94V-0
Terminal
Brass,0.8t,Tin-Plated
Screws
Steel,M4 Ni-Plated
